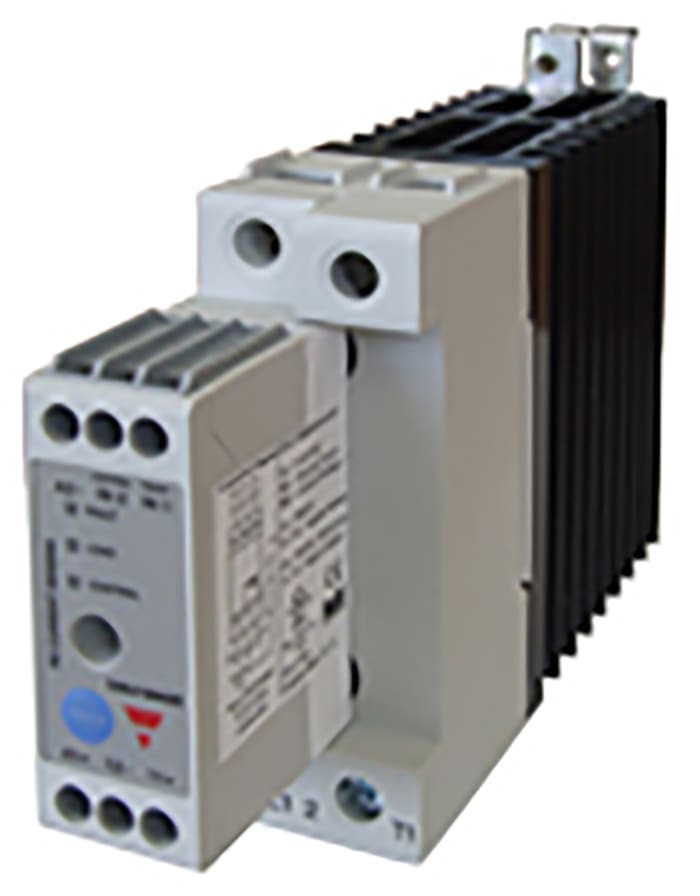

Carlo Gavazzi 43 A Solid State Relay, Zero Crossing, DIN Rail, PNP Open Collector, 600 V ac Maximum Load

Brand

Carlo Gavazzi

Minimum Load Current

0.2 A

Maximum Load Current

43 A

Mounting Type

DIN Rail

Series

RGC1S

Minimum Load Voltage

42 V ac

Maximum Load Voltage

600 V ac

Minimum Control Voltage

4 V dc

Maximum Control Voltage

32 V dc

Switching Type

Zero Crossing

Terminal Type

Box Clamp

Output Device

PNP Open Collector

Maximum Turn On Time

1 s

Dimensions

35.6 x 167.5 x 110mm

Operating Temperature Range

-25 → +70°C

Control Voltage Range

4 → 32 V dc

Load Voltage Range

42 → 600V ac

Depth

167.5mm

Special Features

Heat Sinked

Relay Type

Solid State Relay

Length

35.6mm

Number of Poles

1

Minimum Operating Temperature

-25°C

Height

110mm

Maximum Operating Temperature

+70°C

Off State Leakage Current

3 mA

Country of Origin

MT
