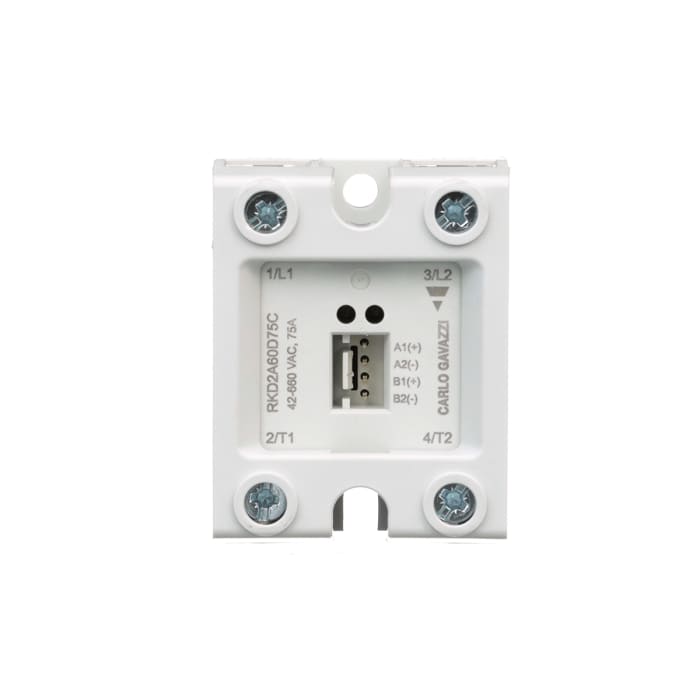

Carlo Gavazzi 75 A Solid State Relay, Zero Crossing, Chassis Mount, 660 V ac Maximum Load
RS Stock No. 188-5270
Brand Carlo Gavazzi
Manufacturers Part No. RKD2A60D75C
2 in stock in the UK
2 in stock in the UK
$ 89.42
Each
Carlo Gavazzi 75 A Solid State Relay, Zero Crossing, Chassis Mount, 660 V ac Maximum Load
Live stock
2 in stock in the UK
Specifications
Brand
Carlo Gavazzi
Minimum Load Current
400 mA
Maximum Load Current
75 A
Series
RK
Mounting Type
Chassis Mount
Minimum Load Voltage
42 V ac
Maximum Load Voltage
660 V ac
Minimum Control Voltage
4 V dc
Maximum Control Voltage
32 V dc
Switching Type
Zero Crossing
Maximum Turn On Time
1 s
Dimensions
44.5 x 33 x 58mm
Operating Temperature Range
-40 → +80°C
Control Voltage Range
4 → 32 V dc
Load Voltage Range
42 → 660V ac
Depth
33mm
Special Features
Heat Sinked
Relay Type
Solid State Relay
Number of Poles
2
Minimum Operating Temperature
-40°C
Height
58mm
Maximum Operating Temperature
+80°C
Off State Leakage Current
<lteq/>3 mA
Length
44.5mm
Country of Origin
MT
