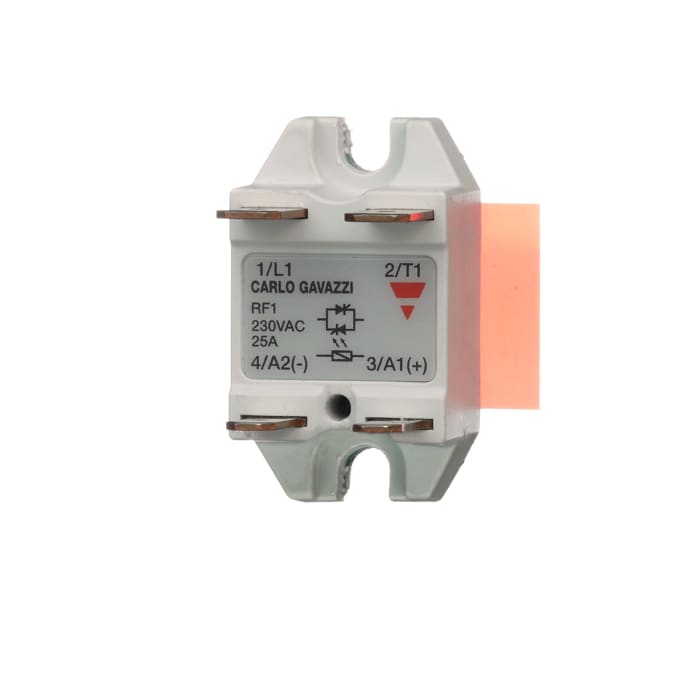

Carlo Gavazzi 25 A Solid State Relay, Zero Crossing, Chassis Mount, 280 V ac Maximum Load

Brand

Carlo Gavazzi

Minimum Load Current

150 mA

Maximum Load Current

25 A

Mounting Type

Chassis Mount

Series

RF1

Minimum Load Voltage

24 V ac

Maximum Load Voltage

280 V ac

Minimum Control Voltage

4.25 V dc

Maximum Control Voltage

9 V dc

Switching Type

Zero Crossing

Terminal Type

Screw

Maximum Turn On Time

1 s

Dimensions

21.1 x 24 x 35.6mm

Operating Temperature Range

-30 → +80°C

Control Voltage Range

4.25 → 9 V dc

Load Voltage Range

24 → 280V ac

Depth

24mm

Special Features

Built-in Transil, LED for Control Status Indication

Relay Type

Solid State Relay

Number of Poles

1

Minimum Operating Temperature

-30°C

Height

35.6mm

Maximum Operating Temperature

+80°C

Off State Leakage Current

<3 mA

Length

21.1mm

Country of Origin

MT
