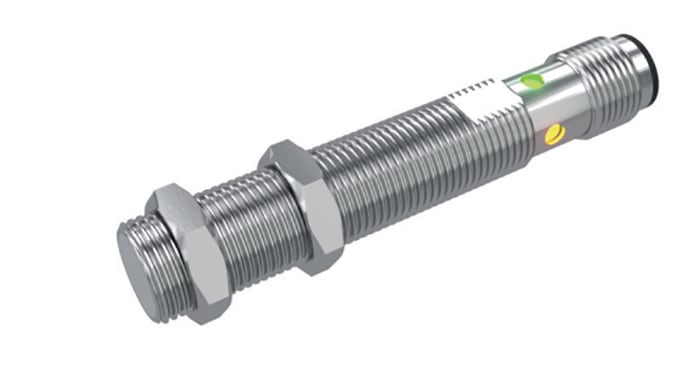

Carlo Gavazzi M18 x 1 Inductive Proximity Sensor - Barrel, PNP, NPN Output, 8 mm Detection, IP67, IO-Link, M12 - 4 Pin

Brand

Carlo Gavazzi

Sensor Technology

Inductive

Body Style

Barrel

Thread Size

M18 x 1

Output Type

PNP, NPN

Detection Range

8 mm

Terminal Type

M12 - 4 Pin

Supply Voltage

10 → 36 V dc

Length

74mm

Communication Protocol

IO-LINK

Maximum dc Voltage

36V

Mounting Type

Flush Mount

IP Rating

IP67

Interface

IO-Link

Switching Current

200 mA

Housing Material

Brass

Reverse Polarity Protection

Yes

Maximum Operating Temperature

+70°C

Standards Met

CE Certified, CSA Certified, EN 60947-1, IEC 60068-2-27, IEC 60068-2-31, IEC 60068-2-6, IEC 60529, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-6, IEC 61000-4-8, UL Listed

Short Circuit Overload Protection

Yes

Minimum Operating Temperature

-40°C

Maximum Switching Frequency

1.5kHz

Country of Origin

LT
