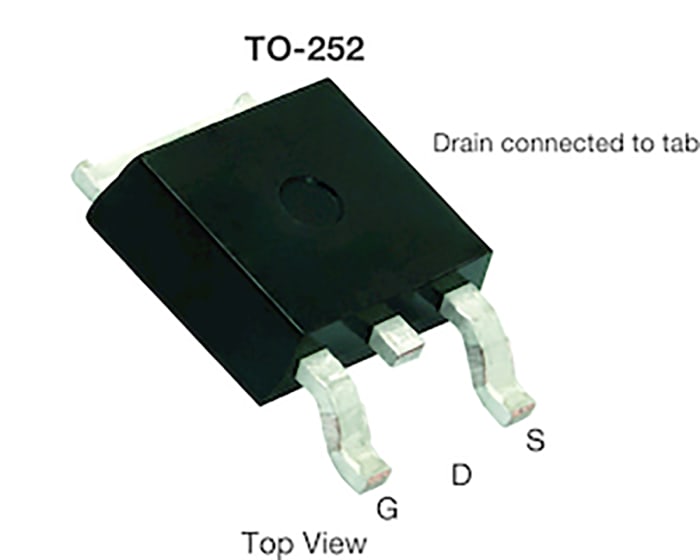

N-Channel MOSFET, 100 A, 60 V, 3-Pin DPAK Vishay SQD50034E_GE3
RS Stock No. 188-5081
Brand Vishay
Manufacturers Part No. SQD50034E_GE3
Temporarily out of stock
Temporarily out of stock
$ 1.242
Each (In a Pack of 10)
N-Channel MOSFET, 100 A, 60 V, 3-Pin DPAK Vishay SQD50034E_GE3
Buy in bulk
| quantity | Unit price |
|---|---|
| 10 - 40 | $ 1.242 |
| 50 - 90 | $ 1.218 |
| 100 - 490 | $ 0.959 |
| 500 - 990 | $ 0.824 |
| 1000+ | $ 0.650 |
Production pack (Reel)
Live stock
Temporarily out of stock
Specifications
Brand
Vishay
Channel Type
N
Maximum Continuous Drain Current
100 A
Maximum Drain Source Voltage
60 V
Package Type
TO-252
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
7.9 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
3.5V
Minimum Gate Threshold Voltage
2.5V
Maximum Power Dissipation
107 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Height
4.57mm
Width
9.65mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.5V
Maximum Operating Temperature
+175 °C
Automotive Standard
AEC-Q101
Length
10.41mm
Typical Gate Charge @ Vgs
58 nC @ 10 V
