N-Channel MOSFET, 61 A, 600 V, 3-Pin TO-247AC Vishay SIHG039N60EF-GE3
RS Stock No. 188-4985
Brand Vishay
Manufacturers Part No. SIHG039N60EF-GE3
490 in stock in the UK
490 in stock in the UK
$ 12.14
Each
N-Channel MOSFET, 61 A, 600 V, 3-Pin TO-247AC Vishay SIHG039N60EF-GE3
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 12.14 |
| 5 - 9 | $ 9.88 |
| 10+ | $ 9.04 |
Production pack (Tube)
Live stock
490 in stock in the UK
Specifications
Brand
Vishay
Channel Type
N
Maximum Continuous Drain Current
61 A
Maximum Drain Source Voltage
600 V

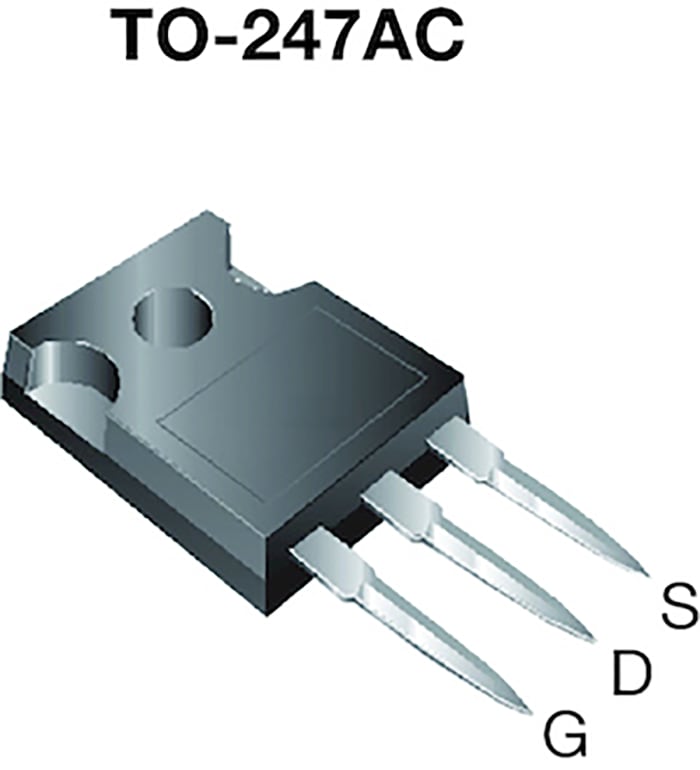

Package Type
TO-247AC
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
40 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5V
Minimum Gate Threshold Voltage
3V
Maximum Power Dissipation
357 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
20.82mm
Width
5.31mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.2V
Maximum Operating Temperature
+150 °C
Length
15.87mm
Typical Gate Charge @ Vgs
84 nC @ 10 V
