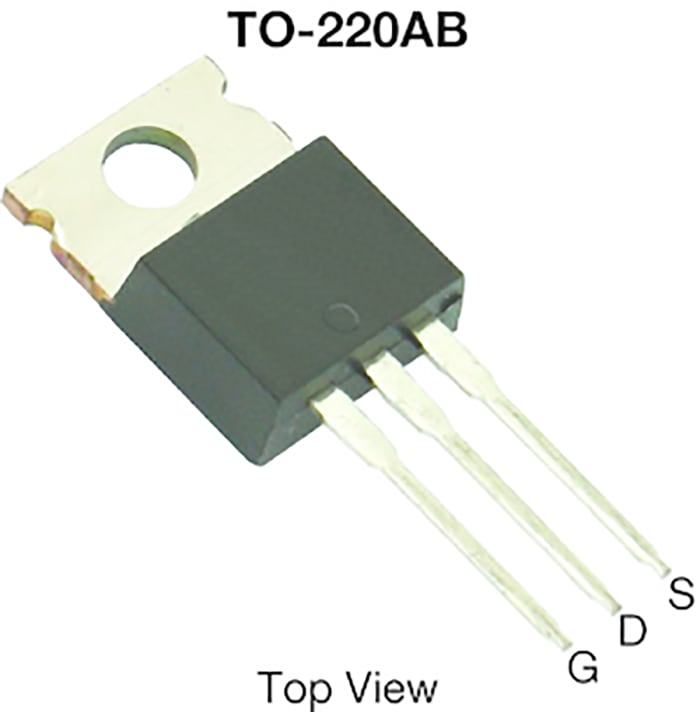

N-Channel MOSFET, 150 A, 40 V, 3-Pin TO-220AB Vishay SUP40012EL-GE3
RS Stock No. 188-4928
Brand Vishay
Manufacturers Part No. SUP40012EL-GE3
350 in stock in the UK
350 in stock in the UK
$ 1.959
Each (In a Tube of 50)
N-Channel MOSFET, 150 A, 40 V, 3-Pin TO-220AB Vishay SUP40012EL-GE3
Buy in bulk
| quantity | Unit price |
|---|---|
| 50 - 50 | $ 1.959 |
| 100 - 450 | $ 1.512 |
| 500 - 950 | $ 1.315 |
| 1000+ | $ 1.094 |
Live stock
350 in stock in the UK
Specifications
Brand
Vishay
Channel Type
N
Maximum Continuous Drain Current
150 A
Maximum Drain Source Voltage
40 V
Package Type
TO-220AB
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
2.3 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
2.5V
Minimum Gate Threshold Voltage
1V
Maximum Power Dissipation
150 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Height
9.01mm
Width
4.65mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.5V
Maximum Operating Temperature
+175 °C
Length
10.51mm
Typical Gate Charge @ Vgs
130 nC @ 10 V
