N-Channel MOSFET, 150 A, 40 V, 3-Pin D2PAK Vishay SUM40012EL-GE3
Temporarily out of stock
Back order for despatch on 06/08/2021
$ 1.598
Each (On a Reel of 800)
Buy in bulk
| quantity | Unit price |
|---|---|
| 800 - 800 | $ 1.598 |
| 1600+ | $ 1.324 |
Live stock
Temporarily out of stock
Back order for despatch on 06/08/2021
Specifications
Brand
Vishay
Channel Type
N
Maximum Continuous Drain Current
150 A
Maximum Drain Source Voltage
40 V

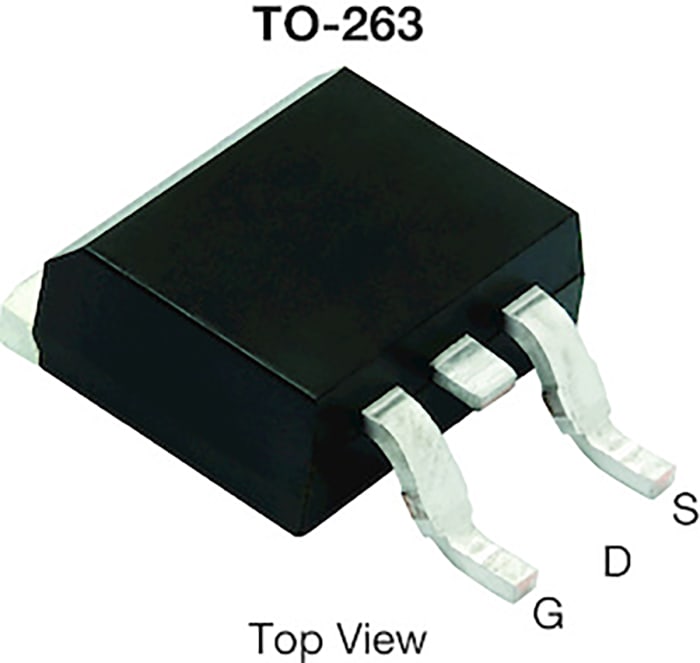

Package Type
TO-263
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
2.2 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
2.5V
Minimum Gate Threshold Voltage
1V
Maximum Power Dissipation
150 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Height
4.57mm
Width
9.65mm
Maximum Operating Temperature
+175 °C
Length
10.41mm
Typical Gate Charge @ Vgs
130 nC @ 10 V
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.5V
