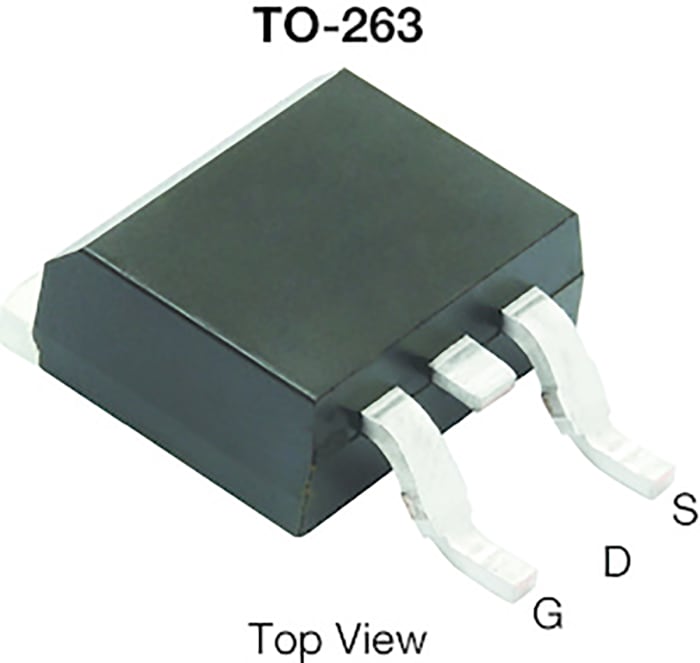

N-Channel MOSFET, 100 A, 60 V, 3-Pin D2PAK Vishay SQM50034E_GE3
RS Stock No. 188-4923
Brand Vishay
Manufacturers Part No. SQM50034E_GE3
740 in stock in the UK
740 in stock in the UK
$ 0.930
Each (On a Reel of 800)
N-Channel MOSFET, 100 A, 60 V, 3-Pin D2PAK Vishay SQM50034E_GE3
Buy in bulk
| quantity | Unit price |
|---|---|
| 800 - 1600 | $ 0.930 |
| 2400+ | $ 0.906 |
Live stock
740 in stock in the UK
Specifications
Brand
Vishay
Channel Type
N
Maximum Continuous Drain Current
100 A
Maximum Drain Source Voltage
60 V
Package Type
TO-263
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
7.5 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
3.5V
Minimum Gate Threshold Voltage
2.5V
Maximum Power Dissipation
150 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Height
4.57mm
Width
9.65mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.5V
Maximum Operating Temperature
+175 °C
Automotive Standard
AEC-Q101
Length
10.41mm
Typical Gate Charge @ Vgs
58 nC @ 10 V
