N-Channel MOSFET, 100 A, 40 V, 3-Pin DPAK Vishay SQD40020E_GE3

Brand

Vishay

Channel Type

N

Maximum Continuous Drain Current

100 A

Maximum Drain Source Voltage

40 V

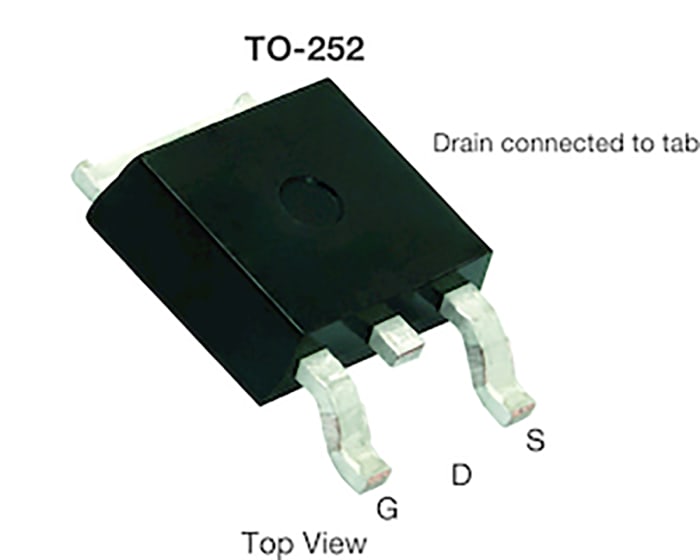

Package Type

TO-252

Mounting Type

Surface Mount

Pin Count

3

Maximum Drain Source Resistance

4.7 mΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

3.5V

Minimum Gate Threshold Voltage

2.5V

Maximum Power Dissipation

107 W

Transistor Configuration

Single

Maximum Gate Source Voltage

±20 V

Number of Elements per Chip

1

Height

4.57mm

Width

9.65mm

Minimum Operating Temperature

-55 °C

Forward Diode Voltage

1.5V

Maximum Operating Temperature

+175 °C

Automotive Standard

AEC-Q101

Length

10.41mm

Typical Gate Charge @ Vgs

84 nC @ 10 V
