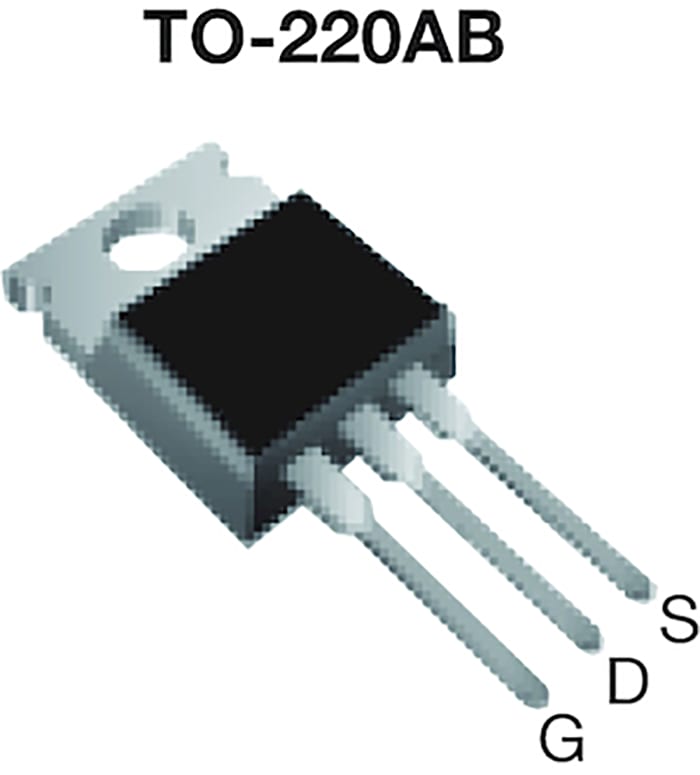

N-Channel MOSFET, 19 A, 600 V, 3-Pin TO-220AB Vishay SIHP22N60EF-GE3
RS Stock No. 188-4878
Brand Vishay
Manufacturers Part No. SIHP22N60EF-GE3
850 in stock in the UK
850 in stock in the UK
$ 2.899
Each (In a Tube of 50)
N-Channel MOSFET, 19 A, 600 V, 3-Pin TO-220AB Vishay SIHP22N60EF-GE3
Buy in bulk
| quantity | Unit price |
|---|---|
| 50 - 50 | $ 2.899 |
| 100 - 200 | $ 2.390 |
| 250 - 450 | $ 2.312 |
| 500 - 950 | $ 2.076 |
| 1000+ | $ 1.822 |
Live stock
850 in stock in the UK
Specifications
Brand
Vishay
Channel Type
N
Maximum Continuous Drain Current
19 A
Maximum Drain Source Voltage
600 V
Package Type
TO-220AB
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
182 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
4V
Minimum Gate Threshold Voltage
2V
Maximum Power Dissipation
179 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
9.01mm
Width
4.65mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.2V
Maximum Operating Temperature
+150 °C
Length
10.51mm
Typical Gate Charge @ Vgs
48 nC @ 10 V
