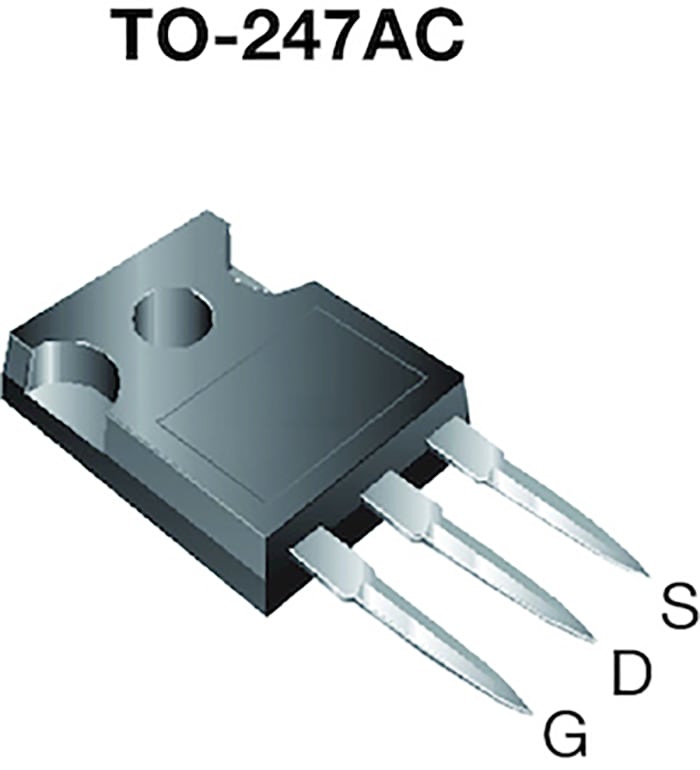

N-Channel MOSFET, 19 A, 600 V, 3-Pin TO-247AC Vishay SIHG22N60EF-GE3
RS Stock No. 188-4877
Brand Vishay
Manufacturers Part No. SIHG22N60EF-GE3
450 in stock in the UK
450 in stock in the UK
$ 3.550
Each (In a Tube of 25)
N-Channel MOSFET, 19 A, 600 V, 3-Pin TO-247AC Vishay SIHG22N60EF-GE3
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 3.550 |
| 100 - 225 | $ 2.919 |
| 250 - 475 | $ 2.826 |
| 500 - 975 | $ 2.538 |
| 1000+ | $ 2.163 |
Live stock
450 in stock in the UK
Specifications
Brand
Vishay
Channel Type
N
Maximum Continuous Drain Current
19 A
Maximum Drain Source Voltage
600 V
Package Type
TO-247AC
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
182 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
4V
Minimum Gate Threshold Voltage
2V
Maximum Power Dissipation
179 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
20.82mm
Width
5.31mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.2V
Maximum Operating Temperature
+150 °C
Length
15.87mm
Typical Gate Charge @ Vgs
48 nC @ 10 V
