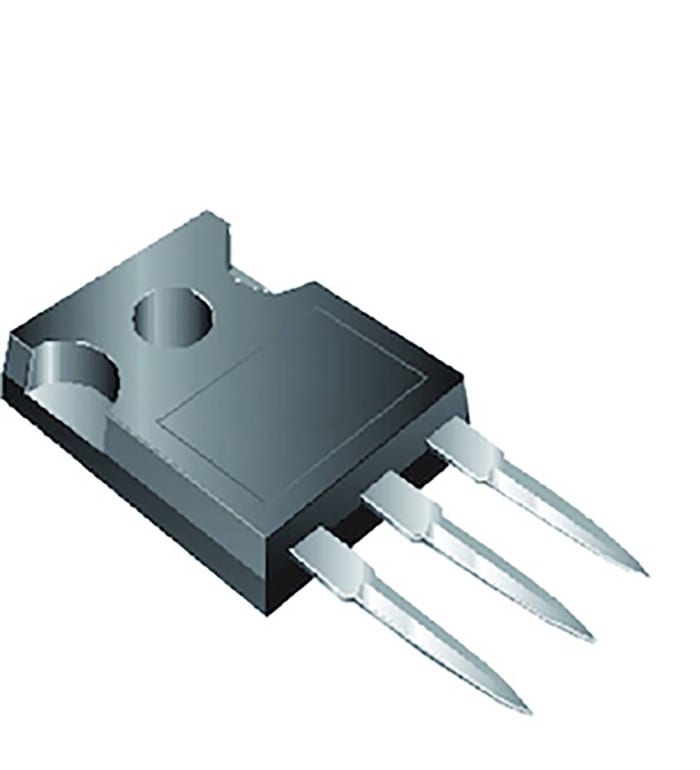

N-Channel MOSFET, 17.4 A, 800 V, 3-Pin TO-247AC Vishay SIHG21N80AE-GE3
RS Stock No. 188-4876
Brand Vishay
Manufacturers Part No. SIHG21N80AE-GE3
475 in stock in the UK
475 in stock in the UK
$ 3.960
Each (In a Tube of 25)
N-Channel MOSFET, 17.4 A, 800 V, 3-Pin TO-247AC Vishay SIHG21N80AE-GE3
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 3.960 |
| 100 - 225 | $ 3.256 |
| 250 - 475 | $ 3.153 |
| 500 - 975 | $ 2.840 |
| 1000+ | $ 2.526 |
Live stock
475 in stock in the UK
Specifications
Brand
Vishay
Channel Type
N
Maximum Continuous Drain Current
17.4 A
Maximum Drain Source Voltage
800 V
Package Type
TO-247AC
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
235 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
4V
Minimum Gate Threshold Voltage
2V
Maximum Power Dissipation
32 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
20.82mm
Width
5.31mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.2V
Maximum Operating Temperature
+150 °C
Length
15.87mm
Typical Gate Charge @ Vgs
48 nC @ 10 V
