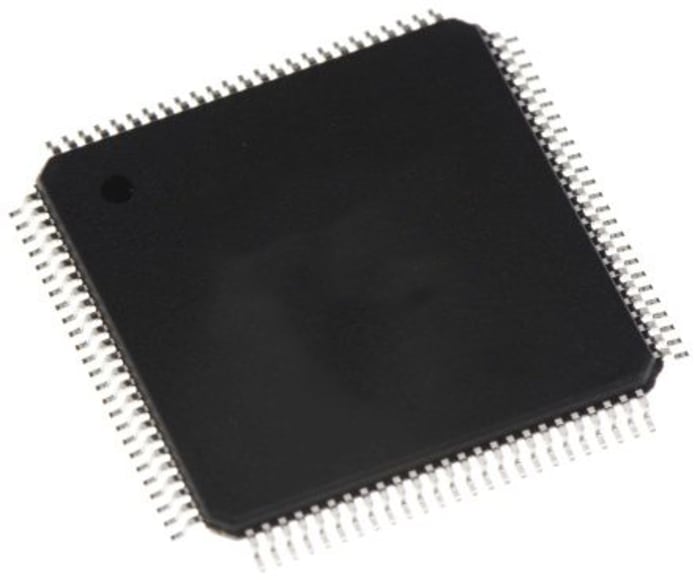

Renesas Electronics R5F563TEDDFP#V1, 32bit CPU Microcontroller, RX63T, 100MHz, 512 kB Flash, 100-Pin LFQFP

Brand

Renesas Electronics

Family Name

RX63T

Package Type

LFQFP

Mounting Type

Surface Mount

Pin Count

100

Device Core

CPU

Data Bus Width

32bit

Program Memory Size

512 kB

Maximum Frequency

100MHz

RAM Size

48 kB

ADC Channels

20

Number of SPI Channels

6

Typical Operating Supply Voltage

4 → 5.5 V

Timer Resolution

16bit

Height

1.55mm

Width

14.1mm

Data Rate

400kbit/s

ADC Resolution

10 bit, 12 bit

Minimum Operating Temperature

-40 °C

Dimensions

14.1 x 14.1 x 1.55mm

Instruction Set Architecture

CISC

Number of ADC Units

2

Program Memory Type

Flash

Maximum Operating Temperature

+85 °C

Number of UART Channels

4

Length

14.1mm

ADCs

1 (12 x 10 bit), 1 (8 x 12 bit)

Number of Timers

1

Number of I2C Channels

5

Country of Origin

CN
