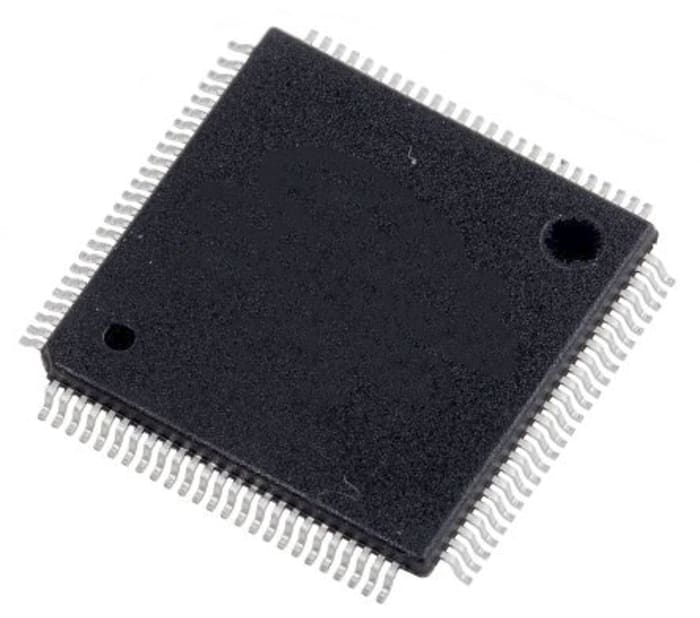

Renesas Electronics R5F524TEADFP#31, 32bit CPU Microcontroller, RX24T, 80MHz, 512 kB Flash, 100-Pin LFQFP

Brand

Renesas Electronics

Family Name

RX24T

Package Type

LFQFP

Mounting Type

Surface Mount

Pin Count

100

Device Core

CPU

Data Bus Width

32bit

Program Memory Size

512 kB

Maximum Frequency

80MHz

RAM Size

32 kB

ADC Channels

22

Number of SPI Channels

4

Typical Operating Supply Voltage

2.7 → 5.5 V

Program Memory Type

Flash

Maximum Operating Temperature

+85 °C

Number of UART Channels

3

Length

14.1mm

ADCs

1 (22 x 12 bit)

Number of Timers

2

Number of I2C Channels

4

Timer Resolution

8 bit, 16bit

Height

1.55mm

Data Rate

400kbit/s

ADC Resolution

12bit

Minimum Operating Temperature

-40 °C

Dimensions

14.1 x 14.1 x 1.55mm

Instruction Set Architecture

CISC

Number of CAN Channels

1

Width

14.1mm

Number of ADC Units

1

Country of Origin

CN
