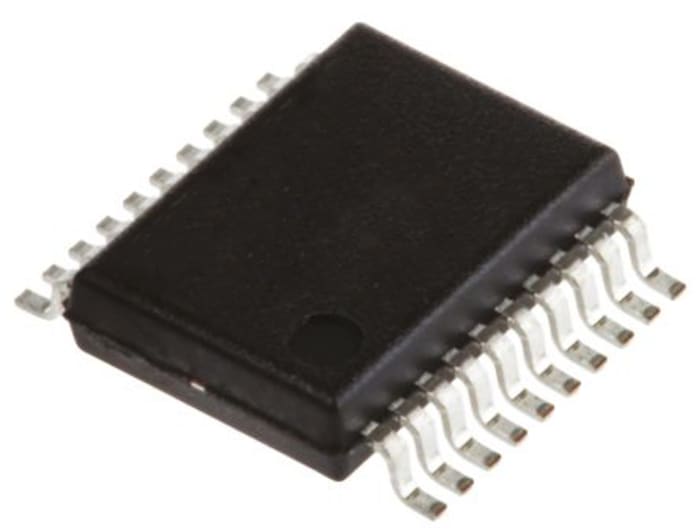

Renesas Electronics R5F10368ASP#V5, 16bit CPU Microcontroller, RL78/G12, 24MHz, 8 kB Flash, 20-Pin LSSOP

Brand

Renesas Electronics

Family Name

RL78/G12

Package Type

LSSOP

Mounting Type

Surface Mount

Pin Count

20

Device Core

CPU

Data Bus Width

16bit

Program Memory Size

8 kB

Maximum Frequency

24MHz

RAM Size

1.5 kB

ADC Channels

11

Typical Operating Supply Voltage

1.8 → 5.5 V

Timer Resolution

8 bit, 16 bit

Height

1.15mm

Width

4.4mm

ADC Resolution

10bit

Timers

1 (4 x 16 bit), 1 (4 x 8 bit)

Minimum Operating Temperature

-40 °C

Dimensions

6.5 x 4.4 x 1.15mm

Instruction Set Architecture

CISC

Number of ADC Units

1

Program Memory Type

Flash

Maximum Operating Temperature

+85 °C

Number of UART Channels

1

Number of I2C Channels

1

Length

6.5mm

ADCs

1 (11 x 10 bit)

Number of Timers

2

Country of Origin

CN
