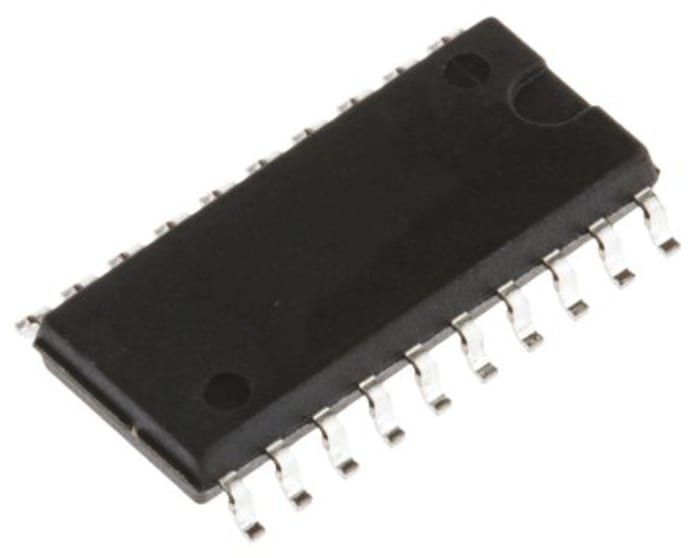

Renesas Electronics R5F1026AGSP#35, 16bit CPU Microcontroller, RL78/G12, 24MHz, 16 kB Flash, 20-Pin LSSOP

Brand

Renesas Electronics

Family Name

RL78/G12

Package Type

LSSOP

Mounting Type

Surface Mount

Pin Count

20

Device Core

CPU

Data Bus Width

16bit

Program Memory Size

16 kB

Maximum Frequency

24MHz

RAM Size

1.5 kB

ADC Channels

11

Typical Operating Supply Voltage

2.4 → 5.5 V

Timer Resolution

8 bit, 16 bit

Height

1.15mm

Width

4.4mm

ADC Resolution

10bit

Timers

1 (4 x 16 bit), 1 (4 x 8 bit)

Minimum Operating Temperature

-40 °C

Dimensions

6.5 x 4.4 x 1.15mm

Instruction Set Architecture

CISC

Number of ADC Units

1

Program Memory Type

Flash

Maximum Operating Temperature

+105 °C

Number of UART Channels

1

Length

6.5mm

ADCs

1 (11 x 10 bit)

Number of Timers

2

Number of I2C Channels

3

Country of Origin

CN
