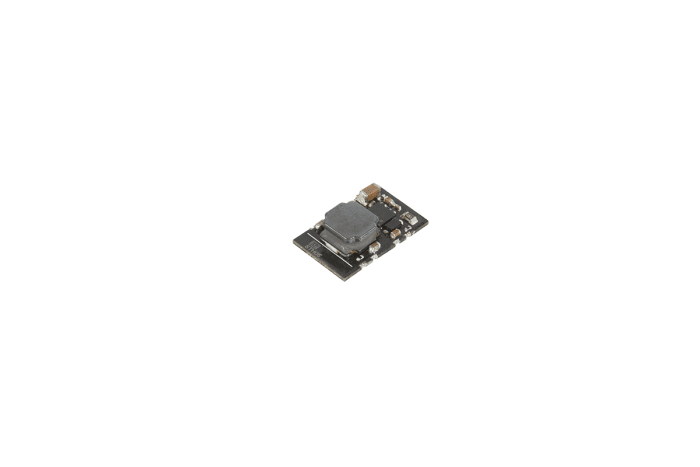

XP Power Surface Mount DC-DC Switching Regulator, 7.2V dc Output Voltage, 14 → 72V dc Input Voltage, 500mA
RS Stock No. 188-3371
Brand XP Power
Manufacturers Part No. STH0548S7V2
39 in stock in the UK
39 in stock in the UK
$ 6.18
Each
XP Power Surface Mount DC-DC Switching Regulator, 7.2V dc Output Voltage, 14 → 72V dc Input Voltage, 500mA
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 6.18 |
| 5 - 9 | $ 9.71 |
| 10 - 24 | $ 9.40 |
| 25 - 49 | $ 9.10 |
| 50+ | $ 8.81 |
Live stock
39 in stock in the UK
Specifications
Brand
XP Power
Input Voltage
14 → 72V dc
Output Voltage
7.2V dc
Number of Outputs
1
Output Current
500mA
Mounting Type
Surface Mount
Package
SMD
Minimum Temperature
-40°C
Maximum Temperature
+100°C
Efficiency
81 % @ 72 V
MTBF
4.8 (Minimum) Mh
Load Regulation
±1%
Line Regulation
±1%
Ripple And Noise
75mV Pk-Pk
Maximum Input Current
62 mA @ 72 V
Width
11.8mm
Depth
5mm
Protection Features
Short Circuit Protection
Switching Frequency Range
550kHz
Weight
1.8g
Power Signal Conversion Type
DC-DC
Series
STH05
Length
19.5mm
Country of Origin
TW
