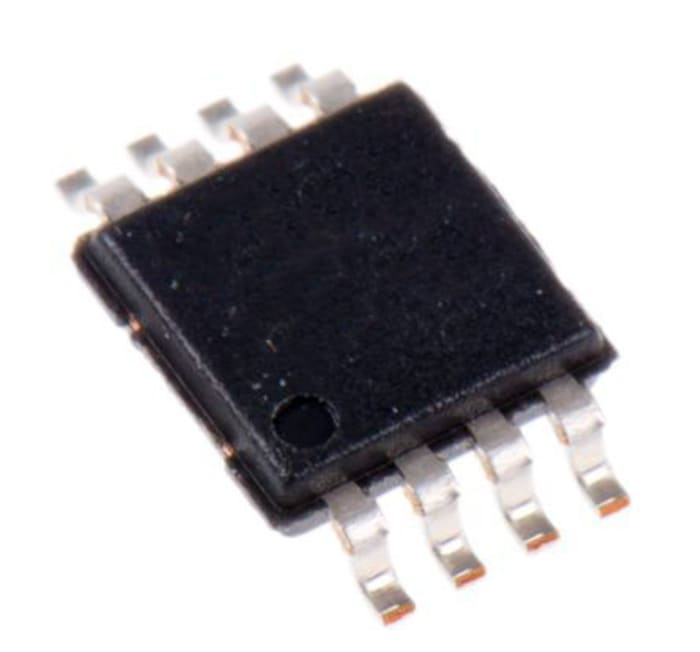

MCP6V51-E/MS Microchip, Zero Drift, Op Amps, 2MHz 1 kHz, 4.5 → 45 V, 8-Pin MSOP
RS Stock No. 187-7726
Brand Microchip
Manufacturers Part No. MCP6V51-E/MS
348 in stock in the UK
348 in stock in the UK
$ 1.356
Each (In a Pack of 6)
MCP6V51-E/MS Microchip, Zero Drift, Op Amps, 2MHz 1 kHz, 4.5 → 45 V, 8-Pin MSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 6 - 6 | $ 1.356 |
| 12 - 24 | $ 1.172 |
| 30 - 114 | $ 1.110 |
| 120+ | $ 1.004 |
Production pack (Tube)
Live stock
348 in stock in the UK
Specifications
Brand
Microchip
Amplifier Type
Zero Drift
Mounting Type
Surface Mount
Package Type
MSOP
Power Supply Type
Single
Number of Channels per Chip
1
Pin Count
8
Typical Single Supply Voltage
4.5 → 45 V
Typical Gain Bandwidth Product
2MHz
Output Type
Rail to Rail
Typical Slew Rate
1.2V/µs
Maximum Operating Frequency
1 kHz
Maximum Operating Temperature
+125 °C
Minimum Operating Temperature
-40 °C
Minimum Input Voltage
4.5 V
Typical Input Voltage Noise Density
10.2nV/√Hz
Length
3mm
Maximum Input Voltage
45 V
Height
0.95mm
Width
3mm
Input Voltage Range
4.5 → 45 V
Typical Voltage Gain
164 dB
Dimensions
3 x 3 x 0.95mm
Output Current
±50 mA
Offset Voltage
±15µV
