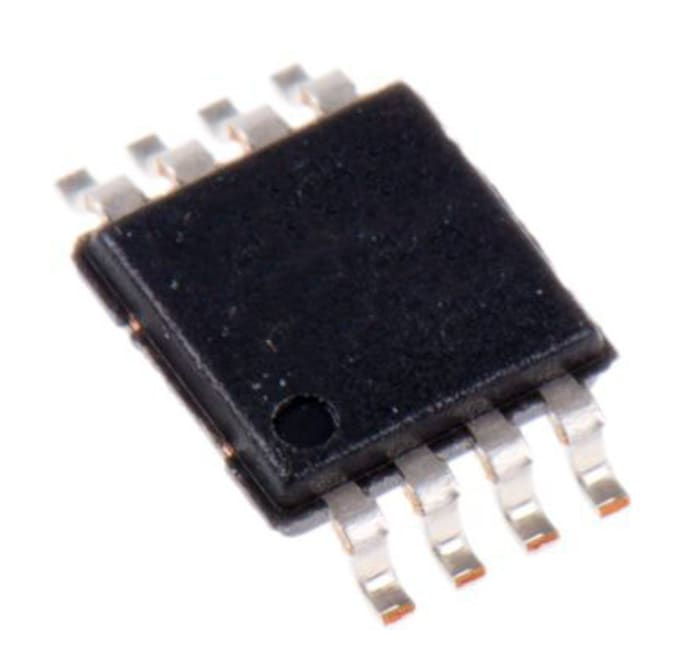

MCP6V51-E/MS Microchip, Zero Drift, Op Amps, 2MHz 1 kHz, 4.5 → 45 V, 8-Pin MSOP
RS Stock No. 187-7710
Brand Microchip
Manufacturers Part No. MCP6V51-E/MS
300 in stock in the UK
300 in stock in the UK
$ 1.074
Each (In a Tube of 100)
MCP6V51-E/MS Microchip, Zero Drift, Op Amps, 2MHz 1 kHz, 4.5 → 45 V, 8-Pin MSOP
Live stock
300 in stock in the UK
Specifications
Brand
Microchip
Amplifier Type
Zero Drift
Mounting Type
Surface Mount
Package Type
MSOP
Power Supply Type
Single
Number of Channels per Chip
1
Pin Count
8
Typical Single Supply Voltage
4.5 → 45 V
Typical Gain Bandwidth Product
2MHz
Output Type
Rail to Rail
Typical Slew Rate
1.2V/µs
Maximum Operating Frequency
1 kHz
Maximum Operating Temperature
+125 °C
Minimum Operating Temperature
-40 °C
Dimensions
3 x 3 x 0.95mm
Output Current
±50 mA
Offset Voltage
±15µV
Minimum Input Voltage
4.5 V
Typical Input Voltage Noise Density
10.2nV/√Hz
Height
0.95mm
Width
3mm
Input Voltage Range
4.5 → 45 V
Typical Voltage Gain
164 dB
Length
3mm
Maximum Input Voltage
45 V
