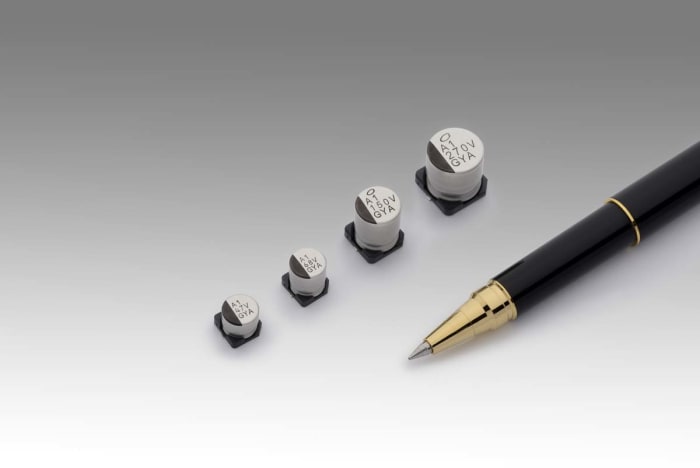

Nichicon 22μF Hybrid Capacitor 50V dc, Surface Mount - GYA1H220MCQ1GS
RS Stock No. 187-2417
Brand Nichicon
Manufacturers Part No. GYA1H220MCQ1GS
Temporarily out of stock
Temporarily out of stock
$ 1.071
Each (In a Pack of 5)
Nichicon 22μF Hybrid Capacitor 50V dc, Surface Mount - GYA1H220MCQ1GS
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 1.071 |
| 25 - 45 | $ 0.910 |
| 50 - 95 | $ 0.803 |
| 100 - 245 | $ 0.696 |
| 250+ | $ 0.642 |
Live stock
Temporarily out of stock
Specifications
Brand
Nichicon
Capacitance
22µF
Voltage
50V dc
Mounting Type
Surface Mount
Technology
Hybrid
Dimensions
6.6 x 6.6 x 5.8mm
Height
5.8mm
Length
6.6mm
Depth
6.6mm
Minimum Operating Temperature
-55°C
Diameter
6.3mm
Maximum Operating Temperature
+125°C
Lead Pitch
2.2mm
Lifetime
4000h
Series
YA
Polarised
Polar
Leakage Current
11 (Short Term) μA
Tolerance
±20%
Equivalent Series Resistance
80mΩ
Ripple Current
750mA
Dissipation Factor
0.1%
Country of Origin
JP
