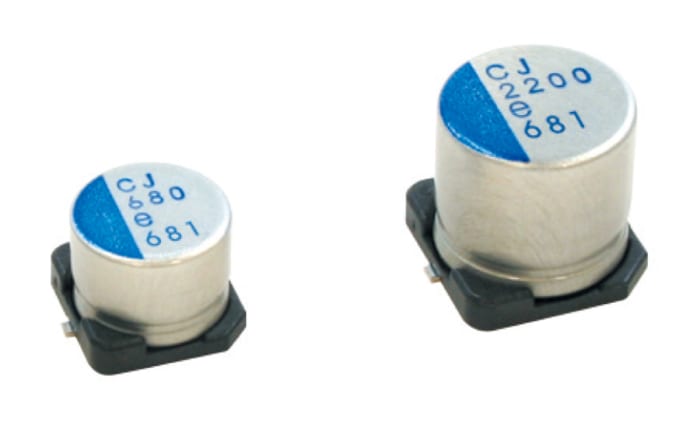

Nichicon 470μF Polymer Capacitor 6.3V dc, Surface Mount - PCJ0J471MCL1GS
RS Stock No. 187-2376
Brand Nichicon
Manufacturers Part No. PCJ0J471MCL1GS
2680 in stock in the UK
2680 in stock in the UK
$ 0.513
Each (In a Pack of 5)
Nichicon 470μF Polymer Capacitor 6.3V dc, Surface Mount - PCJ0J471MCL1GS
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 0.513 |
| 25 - 45 | $ 1.437 |
| 50 - 95 | $ 1.268 |
| 100 - 245 | $ 1.098 |
| 250+ | $ 1.015 |
Live stock
2680 in stock in the UK
Specifications
Brand
Nichicon
Capacitance
470µF
Voltage
6.3V dc
Mounting Type
Surface Mount
Technology
Polymer
Dimensions
8.3 x 8.3 x 7.9mm
Height
7.9mm
Length
8.3mm
Depth
8.3mm
Minimum Operating Temperature
-55°C
Diameter
8mm
Maximum Operating Temperature
+105°C
Lead Pitch
3.2mm
Lifetime
2000h
Series
CJ
Dissipation Factor
0.12%
Polarised
Polar
Leakage Current
592 μA
Tolerance
±20%
Equivalent Series Resistance
13mΩ
Ripple Current
3.95A
Country of Origin
JP
