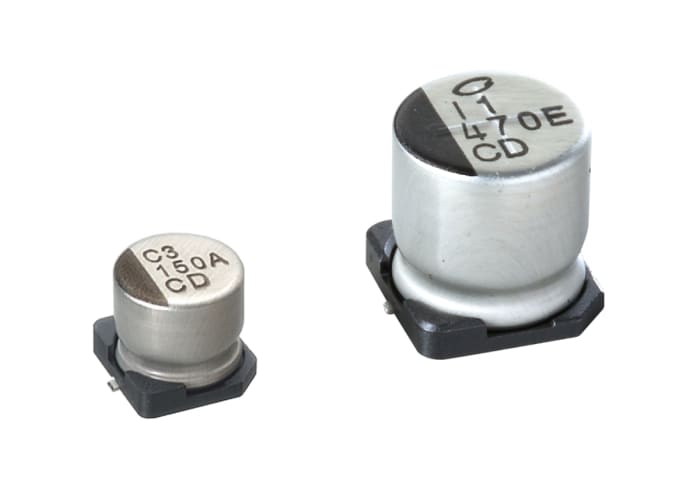

Nichicon 47μF Electrolytic Capacitor 50V dc, Surface Mount - UCD1H470MCL6GS
RS Stock No. 187-2367
Brand Nichicon
Manufacturers Part No. UCD1H470MCL6GS
Temporarily out of stock
Temporarily out of stock
$ 0.424
Each (In a Pack of 20)
Nichicon 47μF Electrolytic Capacitor 50V dc, Surface Mount - UCD1H470MCL6GS
Buy in bulk
| quantity | Unit price |
|---|---|
| 20 - 40 | $ 0.424 |
| 60 - 80 | $ 0.361 |
| 100 - 240 | $ 0.318 |
| 260 - 980 | $ 0.277 |
| 1000+ | $ 0.255 |
Live stock
Temporarily out of stock
Specifications
Brand
Nichicon
Capacitance
47µF
Voltage
50V dc
Mounting Type
Surface Mount
Technology
Electrolytic
Dimensions
8.3 x 8.3 x 6.2mm
Height
6.2mm
Length
8.3mm
Depth
8.3mm
Minimum Operating Temperature
-55°C
Diameter
8mm
Maximum Operating Temperature
+105°C
Lead Pitch
2.3mm
Lifetime
5000h
Series
CD
Dissipation Factor
0.1%
Polarised
Polar
Leakage Current
3 μA
Tolerance
±20%
Ripple Current
200mA
Country of Origin
JP
