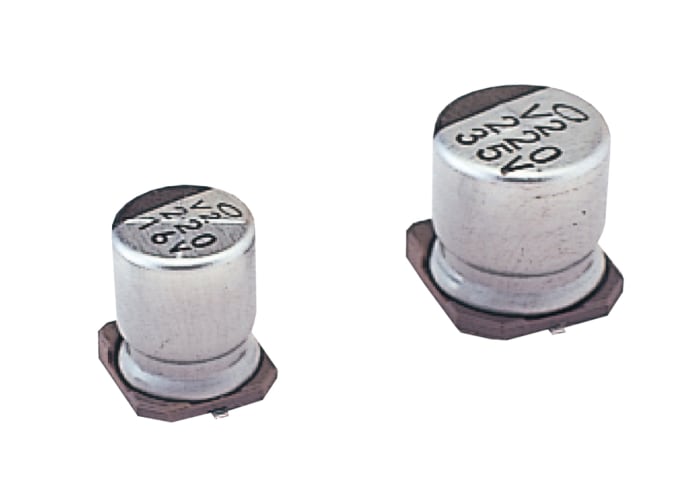

Nichicon 22μF Electrolytic Capacitor 50V dc, Surface Mount - UUR1H220MCL1GS
RS Stock No. 187-2223
Brand Nichicon
Manufacturers Part No. UUR1H220MCL1GS
4000 in stock in the UK
4000 in stock in the UK
$ 0.144
Each (On a Reel of 1000)
Nichicon 22μF Electrolytic Capacitor 50V dc, Surface Mount - UUR1H220MCL1GS
Buy in bulk
| quantity | Unit price |
|---|---|
| 1000 - 1000 | $ 0.144 |
| 2000+ | $ 0.137 |
Live stock
4000 in stock in the UK
Specifications
Brand
Nichicon
Capacitance
22µF
Voltage
50V dc
Mounting Type
Surface Mount
Technology
Electrolytic
Dimensions
6.6 x 6.6 x 5.8mm
Height
5.8mm
Length
6.6mm
Depth
6.6mm
Minimum Operating Temperature
-40°C
Diameter
6.3mm
Maximum Operating Temperature
+85°C
Lead Pitch
2.2mm
Lifetime
2000h
Series
UR
Ripple Current
45mA
Dissipation Factor
0.12%
Polarised
Polar
Leakage Current
33 μA
Tolerance
±20%
