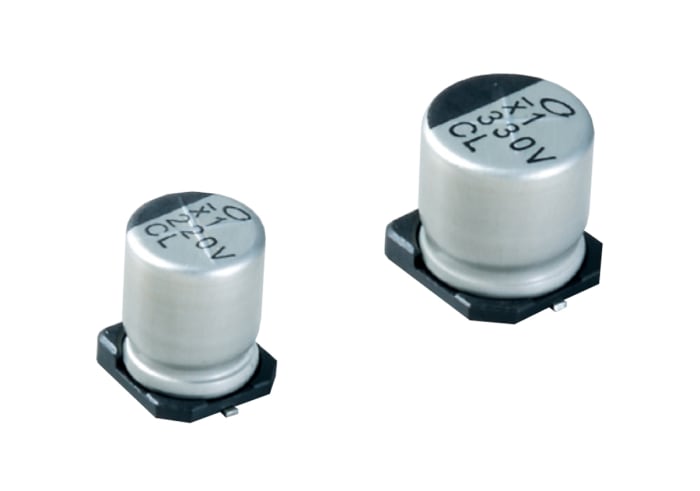

Nichicon 220μF Electrolytic Capacitor 16V dc, Surface Mount - UCL1C221MCL1GS
RS Stock No. 187-2218
Brand Nichicon
Manufacturers Part No. UCL1C221MCL1GS
3600 in stock in the UK
3600 in stock in the UK
$ 0.183
Each (On a Reel of 900)
Nichicon 220μF Electrolytic Capacitor 16V dc, Surface Mount - UCL1C221MCL1GS
Buy in bulk
| quantity | Unit price |
|---|---|
| 900 - 900 | $ 0.183 |
| 1800+ | $ 0.168 |
Live stock
3600 in stock in the UK
Specifications
Brand
Nichicon
Capacitance
220µF
Voltage
16V dc
Mounting Type
Surface Mount
Technology
Electrolytic
Dimensions
6.6 x 6.6 x 7.7mm
Height
7.7mm
Length
6.6mm
Depth
6.6mm
Minimum Operating Temperature
-55°C
Diameter
6.3mm
Maximum Operating Temperature
+105°C
Lead Pitch
2.2mm
Lifetime
2000h
Series
CL
Ripple Current
600mA
Dissipation Factor
0.16%
Polarised
Polar
Leakage Current
3 μA
Tolerance
±20%
Country of Origin
JP
