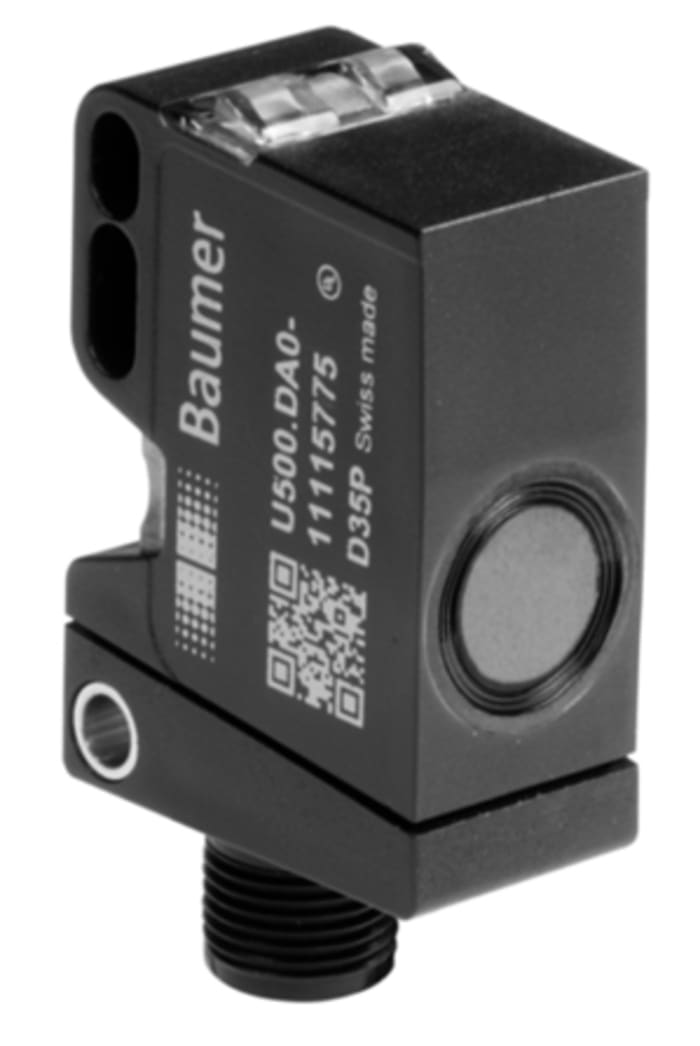

Baumer M12 x 1 Ultrasonic Sensor - Block, NPN Output, 70 → 1000 mm Detection, IP67, IO-Link, M12 - 5 Pin Terminal
RS Stock No. 187-1799
Brand Baumer
Manufacturers Part No. U500.PA0.2-GP2J.72F
34 in stock in the UK
34 in stock in the UK
$ 263.17
Each
Baumer M12 x 1 Ultrasonic Sensor - Block, NPN Output, 70 → 1000 mm Detection, IP67, IO-Link, M12 - 5 Pin Terminal
Live stock
34 in stock in the UK
Specifications
Brand
Baumer
Sensor Technology
Ultrasonic
Thread Size
M12 x 1
Body Style
Block
Output Type
Push Pull
Detection Range
70 → 1000 mm
Terminal Type
M12 - 5 Pin
Supply Voltage
12 → 30 V dc
Length
56.2mm
Communication Protocol
IO-LINK
Width
32.2mm
Depth
18mm
Maximum dc Voltage
30V
IP Rating
IP67
Interface
IO-Link
Switching Current
<100 (Output) mA
Housing Material
Plastic
Minimum Operating Temperature
-25°C
Reverse Polarity Protection
Yes
Maximum Operating Temperature
+65°C
Standards Met
CE, cULus
Short Circuit Overload Protection
Yes
Country of Origin
CH
