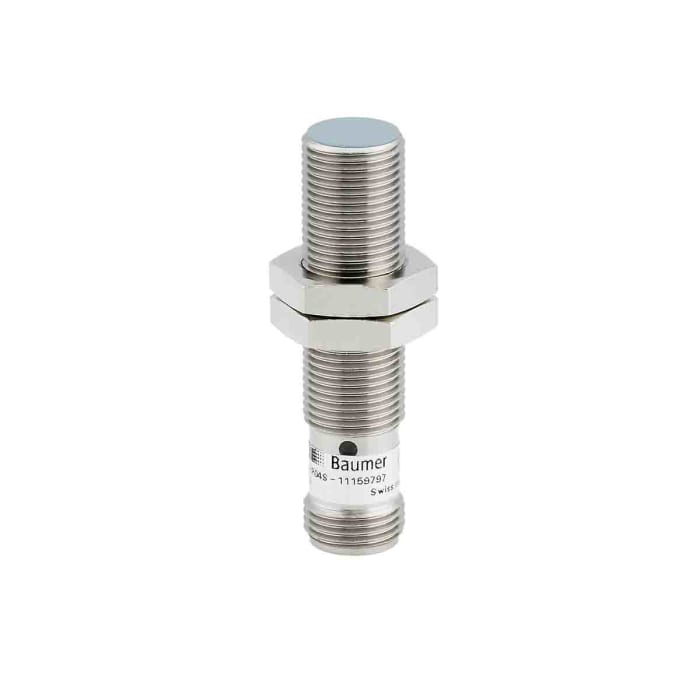

Baumer M12 x 1 Inductive Sensor - Barrel, IO-Link Output, 6 mm Detection, IP67, IO-Link, M12 - 4 Pin Terminal
RS Stock No. 187-1796
Brand Baumer
Manufacturers Part No. IR12.D06L-F50.GP1I.7BF
Temporarily out of stock
Back order for despatch on 04/27/2021
Temporarily out of stock
$ 193.35
Each
Baumer M12 x 1 Inductive Sensor - Barrel, IO-Link Output, 6 mm Detection, IP67, IO-Link, M12 - 4 Pin Terminal
Live stock
Temporarily out of stock
Back order for despatch on 04/27/2021
Specifications
Brand
Baumer
Sensor Technology
Inductive
Thread Size
M12 x 1
Body Style
Barrel
Output Type
IO-Link
Detection Range
6 mm
Terminal Type
M12 - 4 Pin
Supply Voltage
8 → 36 V dc
Length
50mm
Communication Protocol
IO-LINK
Width
12mm
Maximum dc Voltage
36V
Mounting Type
Flush Mount
Interface
IO-Link
Switching Current
100 mA
IP Rating
IP67
Housing Material
Brass Nickel Plated
Minimum Operating Temperature
-25°C
Maximum Switching Frequency
1kHz
Reverse Polarity Protection
Yes
Maximum Operating Temperature
+75°C
Standards Met
CE, cULus
Short Circuit Overload Protection
Yes
Country of Origin
CH
