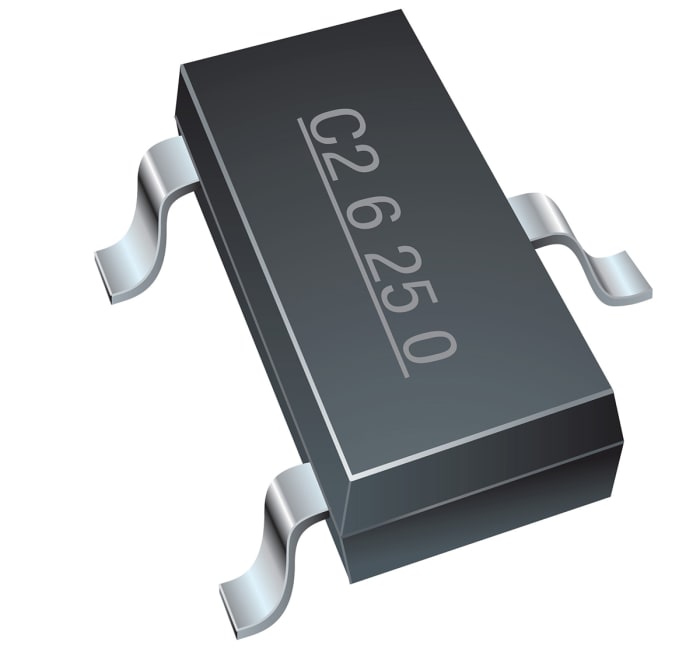

Bourns CDSOT23-T15C-Q, Dual-Element Bi-Directional TVS Diode, 3-Pin SOT-323
RS Stock No. 187-1510
Brand Bourns
Manufacturers Part No. CDSOT23-T15C-Q
2925 in stock in the UK
2925 in stock in the UK
$ 0.407
Each (In a Pack of 25)
Bourns CDSOT23-T15C-Q, Dual-Element Bi-Directional TVS Diode, 3-Pin SOT-323
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.407 |
| 100 - 475 | $ 0.391 |
| 500 - 975 | $ 0.380 |
| 1000 - 1975 | $ 0.371 |
| 2000+ | $ 0.361 |
Production pack (Reel)
Live stock
2925 in stock in the UK
Specifications
Brand
Bourns
Direction Type
Bi-Directional
Diode Configuration
Array
Maximum Clamping Voltage
24V
Minimum Breakdown Voltage
16.7V
Mounting Type
Surface Mount
Package Type
SOT-323
Maximum Reverse Stand-off Voltage
15V
Pin Count
3
Maximum Peak Pulse Current
15A
ESD protection
Yes
Number of Elements per Chip
2
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+150 °C
Height
0.84mm
Width
1.2mm
Test Current
1mA
Maximum Reverse Leakage Current
1µA
Dimensions
2.8 x 1.2 x 0.84mm
Working Voltage
15V
Automotive Standard
AEC-Q101
Capacitance
60pF
Length
2.8mm
Country of Origin
PH
