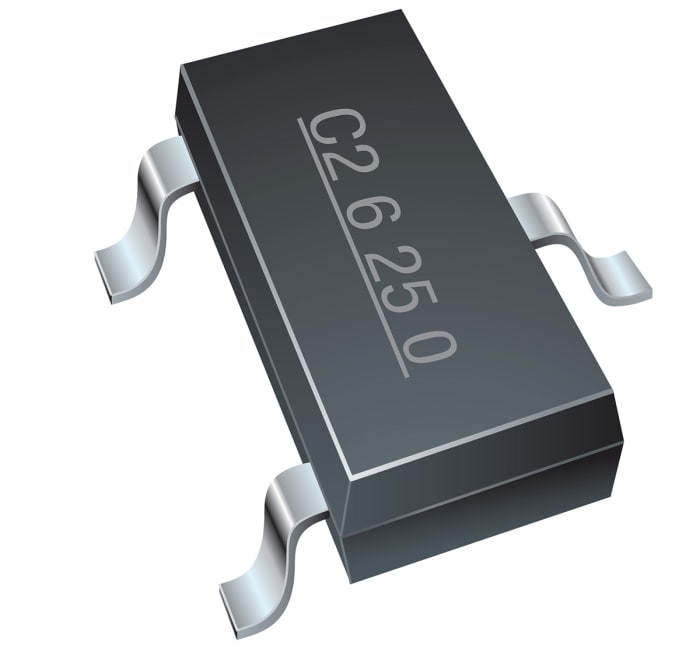

Bourns CDSOT23-T03-Q, Uni-Directional TVS Diode, 3-Pin SOT-323
RS Stock No. 187-1415
Brand Bourns
Manufacturers Part No. CDSOT23-T03-Q
Temporarily out of stock
Back order for despatch on 07/20/2021
Temporarily out of stock
$ 0.164
Each (On a Reel of 3000)
Bourns CDSOT23-T03-Q, Uni-Directional TVS Diode, 3-Pin SOT-323
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 6000 | $ 0.164 |
| 9000+ | $ 0.160 |
Live stock
Temporarily out of stock
Back order for despatch on 07/20/2021
Specifications
Brand
Bourns
Direction Type
Uni-Directional
Diode Configuration
Array
Maximum Clamping Voltage
7V
Minimum Breakdown Voltage
4V
Mounting Type
Surface Mount
Package Type
SOT-323
Maximum Reverse Stand-off Voltage
3.3V
Pin Count
3
Maximum Peak Pulse Current
43A
ESD protection
Yes
Number of Elements per Chip
1
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+150 °C
Height
0.84mm
Width
1.2mm
Test Current
1mA
Maximum Reverse Leakage Current
125µA
Dimensions
2.8 x 1.2 x 0.84mm
Working Voltage
3.3V
Automotive Standard
AEC-Q101
Capacitance
500pF
Length
2.8mm
Country of Origin
PH
