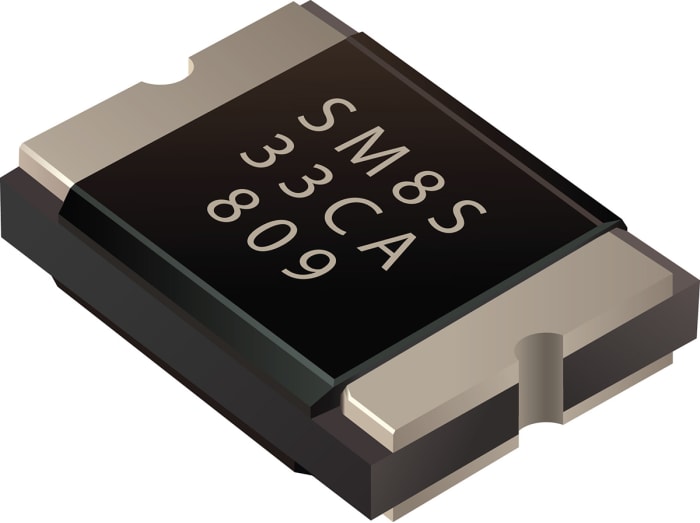

Bourns SM8SF33CA-Q, Dual-Element Bi-Directional TVS Diode, 7000W, 2-Pin DFN
RS Stock No. 187-1406
Brand Bourns
Manufacturers Part No. SM8SF33CA-Q
610 in stock in the UK
610 in stock in the UK
$ 1.531
Each (On a Reel of 750)
Bourns SM8SF33CA-Q, Dual-Element Bi-Directional TVS Diode, 7000W, 2-Pin DFN
Buy in bulk
| quantity | Unit price |
|---|---|
| 750 - 750 | $ 1.531 |
| 1500 - 1500 | $ 1.472 |
| 2250+ | $ 1.434 |
Live stock
610 in stock in the UK
Specifications
Brand
Bourns
Direction Type
Bi-Directional
Minimum Breakdown Voltage
36.7V
Mounting Type
Surface Mount
Package Type
DFN
Maximum Reverse Stand-off Voltage
33V
Pin Count
2
Peak Pulse Power Dissipation
7000W
ESD protection
Yes
Number of Elements per Chip
2
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+175 °C
Height
1.3mm
Width
8.1mm
Test Current
5mA
Maximum Reverse Leakage Current
10µA
Surge Current Rating
131 (Reverse)A
Dimensions
10.5 x 8.1 x 1.3mm
Working Voltage
33V
Automotive Standard
AEC-Q101
Length
10.5mm
Country of Origin
TW
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
