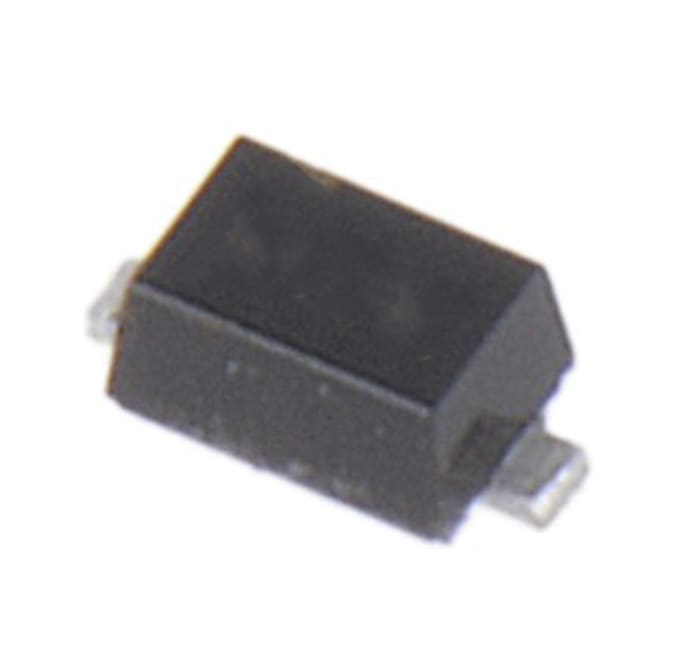

ON Semiconductor SZESD5Z3.3T1G, Uni-Directional ESD Protection Diode, 500mW, 2-Pin SOD-523
RS Stock No. 186-9933
Brand ON Semiconductor
Manufacturers Part No. SZESD5Z3.3T1G
650 in stock in the UK
650 in stock in the UK
$ 0.297
Each (In a Pack of 25)
ON Semiconductor SZESD5Z3.3T1G, Uni-Directional ESD Protection Diode, 500mW, 2-Pin SOD-523
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 25 | $ 0.297 |
| 50 - 75 | $ 0.291 |
| 100 - 225 | $ 0.128 |
| 250 - 975 | $ 0.125 |
| 1000+ | $ 0.099 |
Production pack (Reel)
Live stock
650 in stock in the UK
Specifications
Brand
ON Semiconductor
Direction Type
Uni-Directional
Diode Configuration
Single
Maximum Clamping Voltage
14.1V
Minimum Breakdown Voltage
3.3V
Mounting Type
Surface Mount
Package Type
SOD-523
Maximum Reverse Stand-off Voltage
12V
Pin Count
2
Peak Pulse Power Dissipation
500mW
Maximum Peak Pulse Current
8.4A
ESD protection
Yes
Number of Elements per Chip
1
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+150 °C
Automotive Standard
AEC-Q101
Capacitance
105pF
Length
1.3mm
Height
0.7mm
Width
0.9mm
Test Current
1mA
Maximum Reverse Leakage Current
50nA
Dimensions
1.3 x 0.9 x 0.7mm
