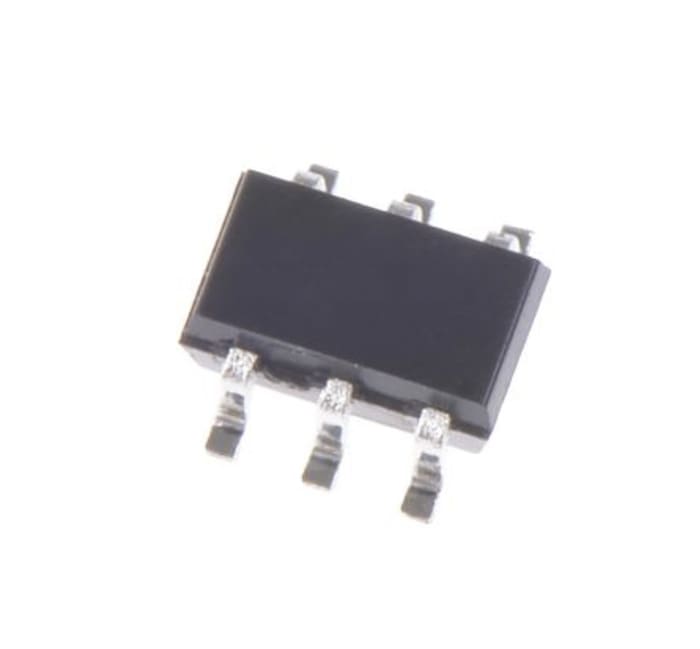

ON Semiconductor SMF05CT2G, Quint-Element Uni-Directional ESD Protection Array, 100W, 6-Pin SC-88
RS Stock No. 186-9897
Brand ON Semiconductor
Manufacturers Part No. SMF05CT2G
4375 in stock in the UK
4375 in stock in the UK
$ 0.302
Each (In a Pack of 25)
ON Semiconductor SMF05CT2G, Quint-Element Uni-Directional ESD Protection Array, 100W, 6-Pin SC-88
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.302 |
| 100 - 975 | $ 0.141 |
| 1000 - 2975 | $ 0.110 |
| 3000 - 8975 | $ 0.097 |
| 9000+ | $ 0.085 |
Production pack (Reel)
Live stock
4375 in stock in the UK
Specifications
Brand
ON Semiconductor
Direction Type
Uni-Directional
Diode Configuration
Array
Maximum Clamping Voltage
12.5V
Minimum Breakdown Voltage
6.2V
Mounting Type
Surface Mount
Package Type
SC-88
Pin Count
6
Peak Pulse Power Dissipation
100W
Maximum Peak Pulse Current
8A
ESD protection
Yes
Number of Elements per Chip
5
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+125 °C
Test Current
1mA
Maximum Reverse Leakage Current
5µA
Dimensions
2.2 x 1.35 x 1mm
Height
1mm
Width
1.35mm
Working Voltage
5V
Automotive Standard
AEC-Q101
Capacitance
130pF
Length
2.2mm
