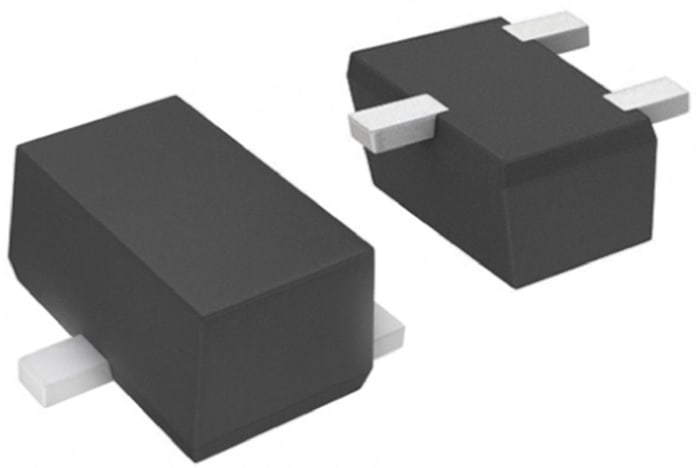

ON Semiconductor ESD7C5.0DT5G, Dual-Element Uni-Directional ESD Protection Diode, 240mW, 3-Pin SOT-723
RS Stock No. 186-9860
Brand ON Semiconductor
Manufacturers Part No. ESD7C5.0DT5G
15400 in stock in the UK
15400 in stock in the UK
$ 0.265
Each (In a Pack of 25)
ON Semiconductor ESD7C5.0DT5G, Dual-Element Uni-Directional ESD Protection Diode, 240mW, 3-Pin SOT-723
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 25 | $ 0.265 |
| 50 - 475 | $ 0.259 |
| 500 - 975 | $ 0.122 |
| 1000 - 2475 | $ 0.118 |
| 2500+ | $ 0.115 |
Production pack (Reel)
Live stock
15400 in stock in the UK
Specifications
Brand
ON Semiconductor
Direction Type
Uni-Directional
Diode Configuration
Common Anode
Minimum Breakdown Voltage
5V
Mounting Type
Surface Mount
Package Type
SOT-723
Maximum Reverse Stand-off Voltage
5V
Pin Count
3
Peak Pulse Power Dissipation
240mW
ESD protection
Yes
Number of Elements per Chip
2
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+150 °C
Height
0.55mm
Width
0.85mm
Test Current
1mA
Maximum Reverse Leakage Current
500nA
Dimensions
1.25 x 0.85 x 0.55mm
Automotive Standard
AEC-Q101
Capacitance
6.2pF
Length
1.25mm
