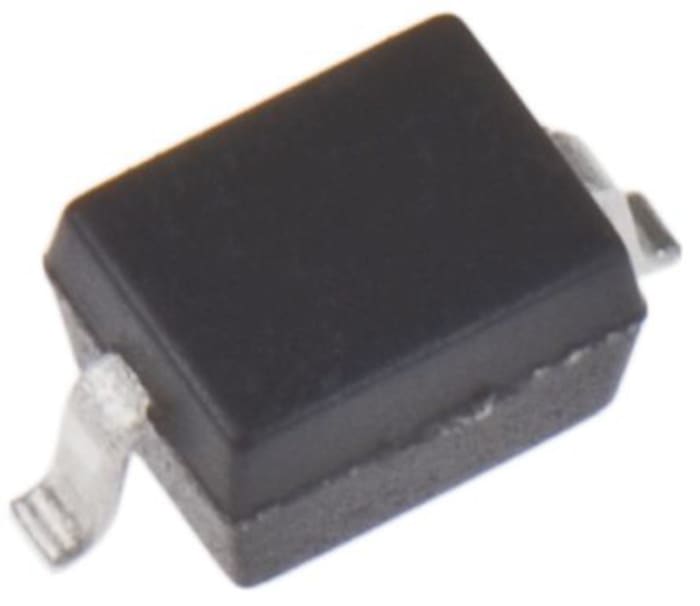

ON Semiconductor ESD7371HT1G, Uni-Directional ESD Protection Diode, 300mW, 2-Pin SOD-323
RS Stock No. 186-9826
Brand ON Semiconductor
Manufacturers Part No. ESD7371HT1G
2725 in stock in the UK
2725 in stock in the UK
$ 0.255
Each (In a Pack of 25)
ON Semiconductor ESD7371HT1G, Uni-Directional ESD Protection Diode, 300mW, 2-Pin SOD-323
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.255 |
| 100 - 975 | $ 0.118 |
| 1000 - 2975 | $ 0.093 |
| 3000 - 8975 | $ 0.079 |
| 9000+ | $ 0.070 |
Production pack (Reel)
Live stock
2725 in stock in the UK
Specifications
Brand
ON Semiconductor
Direction Type
Uni-Directional
Diode Configuration
Single
Maximum Clamping Voltage
20V
Minimum Breakdown Voltage
7V
Mounting Type
Surface Mount
Package Type
SOD-323
Maximum Reverse Stand-off Voltage
5.3V
Pin Count
2
Peak Pulse Power Dissipation
300mW
Maximum Peak Pulse Current
3A
ESD protection
Yes
Number of Elements per Chip
1
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+150 °C
Maximum Reverse Leakage Current
50nA
Dimensions
1.8 x 1.35 x 0.9mm
Working Voltage
5.3V
Automotive Standard
AEC-Q101
Capacitance
0.7pF
Length
1.8mm
Height
0.9mm
Width
1.35mm
Test Current
1mA
