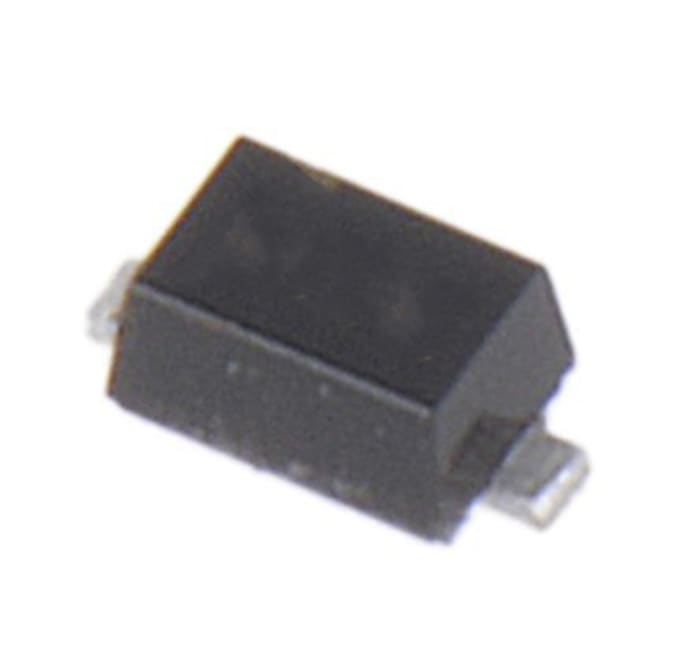

ON Semiconductor ESD7361XV2T1G, Uni-Directional ESD Protection Diode, 2-Pin SOD-523
RS Stock No. 186-9802
Brand ON Semiconductor
Manufacturers Part No. ESD7361XV2T1G
5650 in stock in the UK
5650 in stock in the UK
$ 0.273
Each (In a Pack of 25)
ON Semiconductor ESD7361XV2T1G, Uni-Directional ESD Protection Diode, 2-Pin SOD-523
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.273 |
| 100 - 975 | $ 0.128 |
| 1000 - 2975 | $ 0.099 |
| 3000 - 8975 | $ 0.086 |
| 9000+ | $ 0.078 |
Production pack (Reel)
Live stock
5650 in stock in the UK
Specifications
Brand
ON Semiconductor
Diode Configuration
Single
Direction Type
Uni-Directional
Maximum Clamping Voltage
34V
Minimum Breakdown Voltage
16.5V
Mounting Type
Surface Mount
Package Type
SOD-523
Pin Count
2
Maximum Peak Pulse Current
16A
ESD protection
Yes
Number of Elements per Chip
1
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+125 °C
Dimensions
1.3 x 0.9 x 0.7mm
Working Voltage
16V
Automotive Standard
AEC-Q101
Capacitance
0.55pF
Length
1.3mm
Height
0.7mm
Width
0.9mm
Test Current
1mA
Maximum Reverse Leakage Current
1µA
