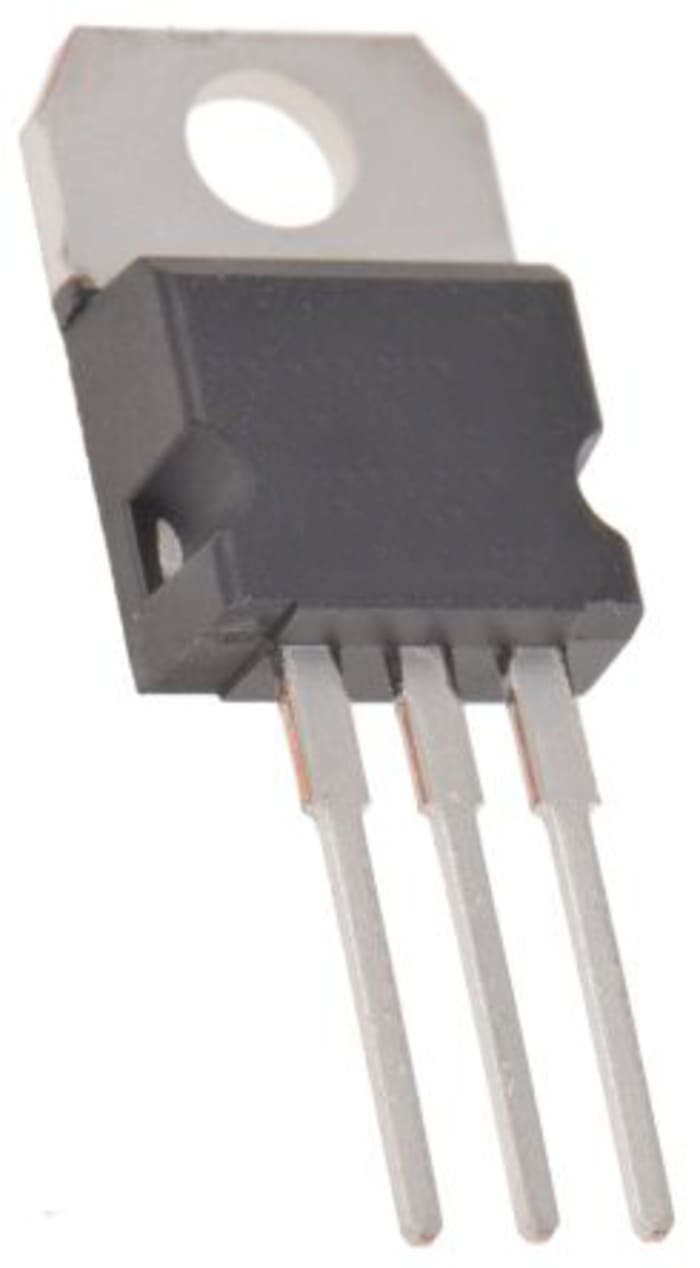

ON Semiconductor, 8 V Linear Voltage Regulator, 350mA, 1-Channel, ±2% 4-Pin, TO-220 MC78M08CTG
RS Stock No. 186-9799
Brand ON Semiconductor
Manufacturers Part No. MC78M08CTG
250 in stock in the UK
250 in stock in the UK
$ 0.469
Each (In a Pack of 25)
ON Semiconductor, 8 V Linear Voltage Regulator, 350mA, 1-Channel, ±2% 4-Pin, TO-220 MC78M08CTG
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.469 |
| 100 - 975 | $ 0.281 |
| 1000 - 2475 | $ 0.207 |
| 2500 - 9975 | $ 0.180 |
| 10000+ | $ 0.175 |
Production pack (Tube)
Live stock
250 in stock in the UK
Specifications
Brand
ON Semiconductor
Maximum Output Current
350mA
Regulator Type
Linear Voltage
Number of Outputs
1
Line Regulation
50 mV
Accuracy
±2%
Load Regulation
100 mV
Mounting Type
Through Hole
Polarity
Positive
Quiescent Current
0.8mA
Package Type
TO-220
Pin Count
4
Output Type
Fixed
Dimensions
10.28 x 4.82 x 15.75mm
Height
15.75mm
Width
4.82mm
Minimum Operating Temperature
0 °C
Minimum Input Voltage
10 V
Maximum Operating Temperature
+125 °C
Automotive Standard
AEC-Q100
Length
10.28mm
Maximum Input Voltage
35 V dc
