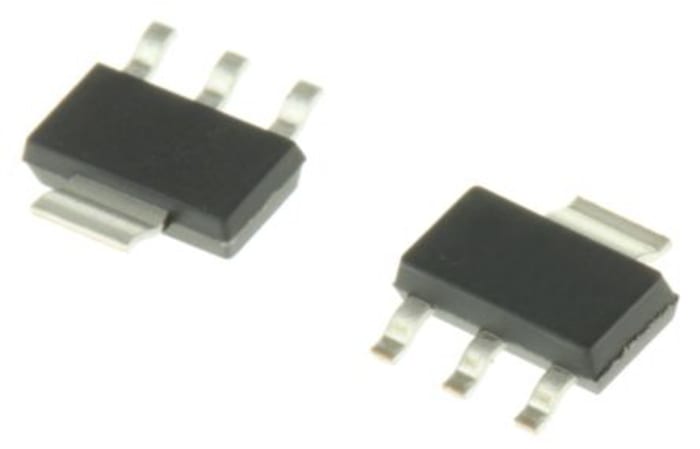

ON Semiconductor, 1.8 V Linear Voltage Regulator, 800mA, 1-Channel, ±1% 4-Pin, SOT-223 NCP1117ST18T3G
RS Stock No. 186-9757
Brand ON Semiconductor
Manufacturers Part No. NCP1117ST18T3G
22925 in stock in the UK
22925 in stock in the UK
$ 0.371
Each (In a Pack of 25)
ON Semiconductor, 1.8 V Linear Voltage Regulator, 800mA, 1-Channel, ±1% 4-Pin, SOT-223 NCP1117ST18T3G
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.371 |
| 100 - 975 | $ 0.224 |
| 1000 - 3975 | $ 0.164 |
| 4000 - 7975 | $ 0.142 |
| 8000+ | $ 0.138 |
Production pack (Reel)
Live stock
22925 in stock in the UK
Specifications
Brand
ON Semiconductor
Maximum Output Current
800mA
Regulator Type
Linear Voltage
Number of Outputs
1
Line Regulation
1 mV
Accuracy
±1%
Load Regulation
6 mV
Mounting Type
Surface Mount
Polarity
Positive
Quiescent Current
10mA
Package Type
SOT-223
Pin Count
4
Reference Voltage
1.27V
Output Type
Fixed
Dimensions
6.7 x 3.7 x 1.69mm
Height
1.69mm
Width
3.7mm
Minimum Operating Temperature
0 °C
Minimum Input Voltage
2.4 V
Maximum Operating Temperature
+125 °C
Automotive Standard
AEC-Q100
Length
6.7mm
Maximum Input Voltage
20 V
