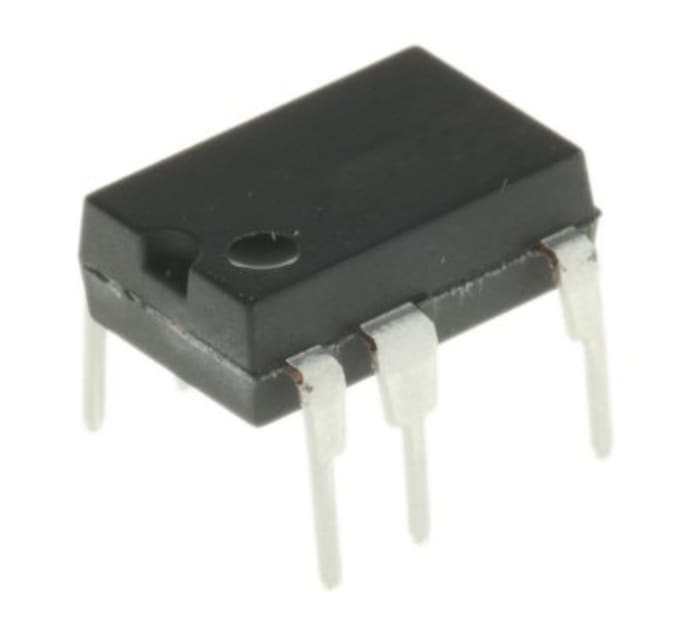

ON Semiconductor NCP1013AP100G, PWM Controller, 10 V, 100 kHz 7-Pin, PDIP
RS Stock No. 186-9732
Brand ON Semiconductor
Manufacturers Part No. NCP1013AP100G
Temporarily out of stock
Back order for despatch on 09/07/2021
Temporarily out of stock
$ 0.816
Each (In a Pack of 10)
ON Semiconductor NCP1013AP100G, PWM Controller, 10 V, 100 kHz 7-Pin, PDIP
Buy in bulk
| quantity | Unit price |
|---|---|
| 10 - 90 | $ 0.816 |
| 100 - 490 | $ 0.599 |
| 500 - 990 | $ 0.573 |
| 1000 - 2490 | $ 0.446 |
| 2500+ | $ 0.430 |
Production pack (Tube)
Live stock
Temporarily out of stock
Back order for despatch on 09/07/2021
Specifications
Brand
ON Semiconductor
Maximum Switching Frequency
100 kHz
Control Method
Current
Mounting Type
Through Hole
Package Type
PDIP
Pin Count
7
Topology
Flyback
Maximum Duty Cycle
72%
Dimensions
10.16 x 7.11 x 4.95mm
Length
10.16mm
PWM Controller Type
Current Mode
Width
7.11mm
Height
4.95mm
Minimum Operating Supply Voltage
-3 V
Maximum Operating Temperature
+150 °C
Maximum Operating Supply Voltage
10 V
