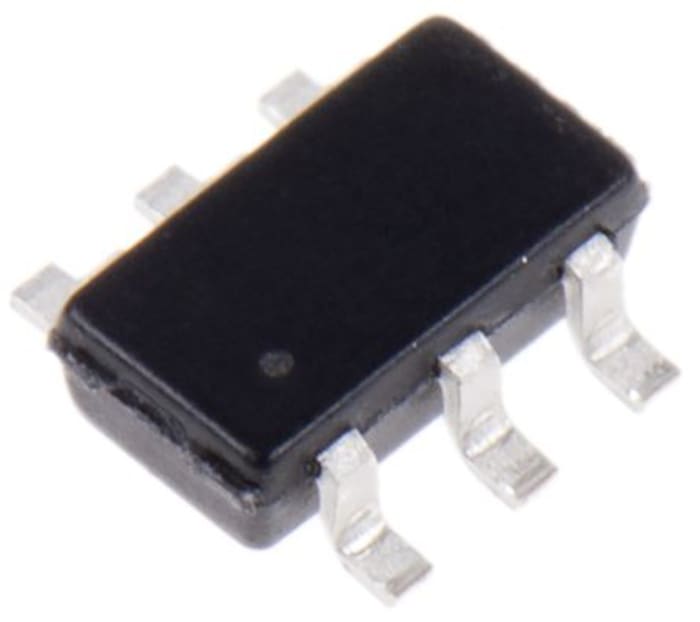

ON Semiconductor SMS24CT1G, Quint-Element Uni-Directional ESD Protection Array, 350W, 6-Pin TSOP
RS Stock No. 186-9646
Brand ON Semiconductor
Manufacturers Part No. SMS24CT1G
6000 in stock in the UK
6000 in stock in the UK
$ 0.310
Each (In a Pack of 25)
ON Semiconductor SMS24CT1G, Quint-Element Uni-Directional ESD Protection Array, 350W, 6-Pin TSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.310 |
| 100 - 975 | $ 0.181 |
| 1000 - 2975 | $ 0.124 |
| 3000 - 8975 | $ 0.109 |
| 9000+ | $ 0.097 |
Production pack (Reel)
Live stock
6000 in stock in the UK
Specifications
Brand
ON Semiconductor
Direction Type
Uni-Directional
Diode Configuration
Array
Maximum Clamping Voltage
44V
Minimum Breakdown Voltage
26.7V
Mounting Type
Surface Mount
Package Type
TSOP
Pin Count
6
Peak Pulse Power Dissipation
350W
Maximum Peak Pulse Current
24A
ESD protection
Yes
Number of Elements per Chip
5
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+125 °C
Height
1mm
Width
1.7mm
Test Current
1mA
Maximum Reverse Leakage Current
5µA
Dimensions
3.1 x 1.7 x 1mm
Working Voltage
24V
Capacitance
75pF
Length
3.1mm
