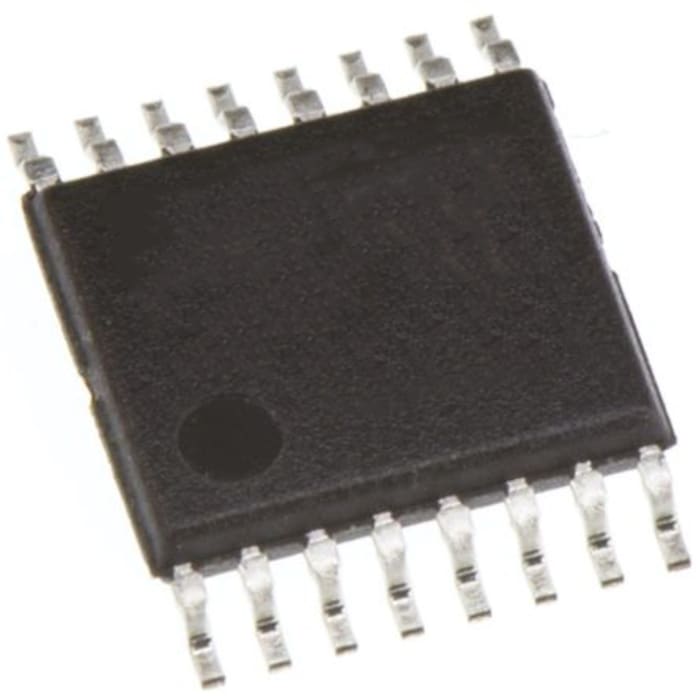

ON Semiconductor MC74HCT595ADTG 8-stage Surface Mount Shift Register HCT, 16-Pin TSSOP
RS Stock No. 186-9645
Brand ON Semiconductor
Manufacturers Part No. MC74HCT595ADTG
Temporarily out of stock
Temporarily out of stock
$ 0.338
Each (In a Pack of 25)
ON Semiconductor MC74HCT595ADTG 8-stage Surface Mount Shift Register HCT, 16-Pin TSSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.338 |
| 100 - 975 | $ 0.189 |
| 1000 - 2475 | $ 0.141 |
| 2500 - 9975 | $ 0.122 |
| 10000+ | $ 0.114 |
Production pack (Tube)
Live stock
Temporarily out of stock
Specifications
Brand
ON Semiconductor
Package Type
TSSOP
Logic Function
Shift Register
Number of Stages
8
Logic Family
HCT
Mounting Type
Surface Mount
Operation Mode
Serial to Parallel
Pin Count
16
Minimum Operating Supply Voltage
4.5 V
Maximum Operating Supply Voltage
5.5 V
Dimensions
5.1 x 4.5 x 1.05mm
Minimum Operating Temperature
-55 °C
Reset Type
Asynchronous
Maximum Operating Temperature
125 °C
