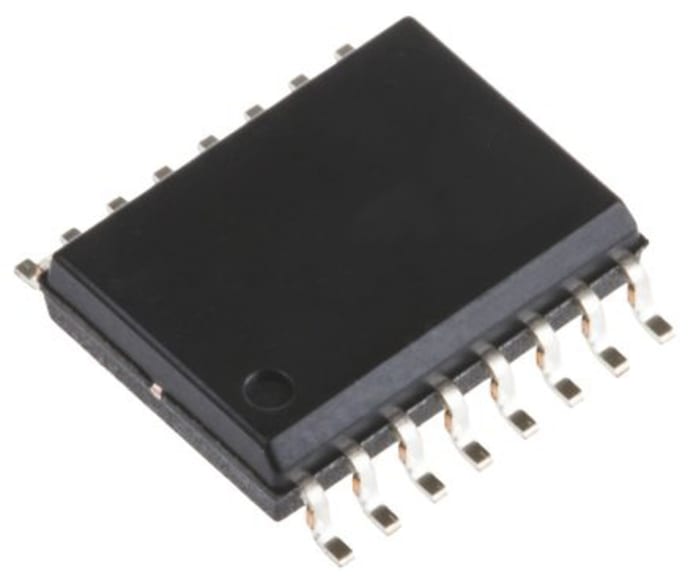

ON Semiconductor MC74HCT595ADR2G 8-stage Surface Mount Shift Register HCT, 16-Pin SOIC
RS Stock No. 186-9612
Brand ON Semiconductor
Manufacturers Part No. MC74HCT595ADR2G
Temporarily out of stock
Temporarily out of stock
$ 0.357
Each (In a Pack of 25)
ON Semiconductor MC74HCT595ADR2G 8-stage Surface Mount Shift Register HCT, 16-Pin SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.357 |
| 100 - 975 | $ 0.187 |
| 1000 - 2475 | $ 0.140 |
| 2500 - 9975 | $ 0.121 |
| 10000+ | $ 0.113 |
Production pack (Reel)
Live stock
Temporarily out of stock
Specifications
Brand
ON Semiconductor
Package Type
SOIC
Logic Function
Shift Register
Number of Stages
8
Logic Family
HCT
Mounting Type
Surface Mount
Operation Mode
Serial to Parallel
Pin Count
16
Minimum Operating Supply Voltage
4.5 V
Maximum Operating Supply Voltage
5.5 V
Dimensions
10 x 4 x 1.5mm
Minimum Operating Temperature
-55 °C
Reset Type
Asynchronous
Maximum Operating Temperature
125 °C
