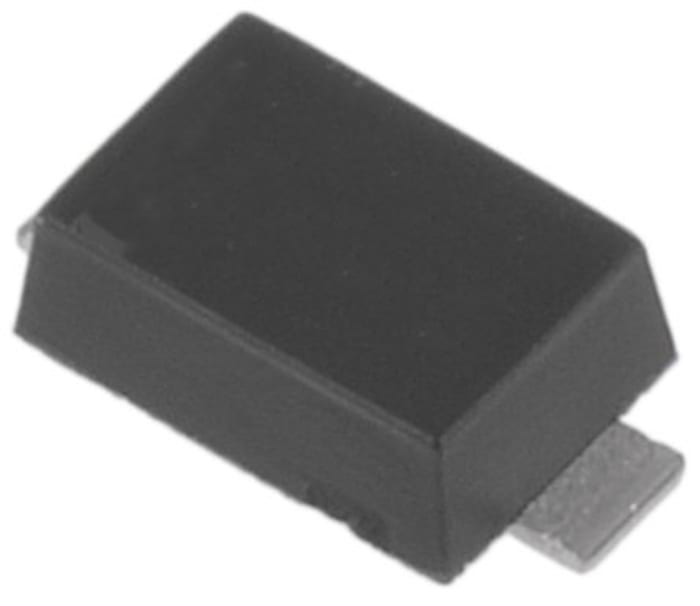

ON Semiconductor, 5.6V Zener Diode 500 mW SMT 2-Pin SOD-123
RS Stock No. 186-9466
Brand ON Semiconductor
Manufacturers Part No. SZMMSZ4690T1G
5450 in stock in the UK
5450 in stock in the UK
$ 0.232
Each (In a Pack of 25)
ON Semiconductor, 5.6V Zener Diode 500 mW SMT 2-Pin SOD-123
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.232 |
| 100 - 975 | $ 0.103 |
| 1000 - 2975 | $ 0.078 |
| 3000 - 8975 | $ 0.060 |
| 9000+ | $ 0.052 |
Production pack (Reel)
Live stock
5450 in stock in the UK
Specifications
Brand
ON Semiconductor
Diode Configuration
Single
Nominal Zener Voltage
5.6V
Number of Elements per Chip
1
Mounting Type
Surface Mount
Maximum Power Dissipation
500 mW
Package Type
SOD-123
Zener Type
Voltage Regulator
Pin Count
2
Test Current
50µA
Maximum Reverse Leakage Current
10µA
Dimensions
2.84 x 1.8 x 1.25mm
Minimum Operating Temperature
-55 °C
Forward Voltage
0.9V
Forward Current
10mA
Maximum Operating Temperature
+150 °C
Automotive Standard
AEC-Q101
