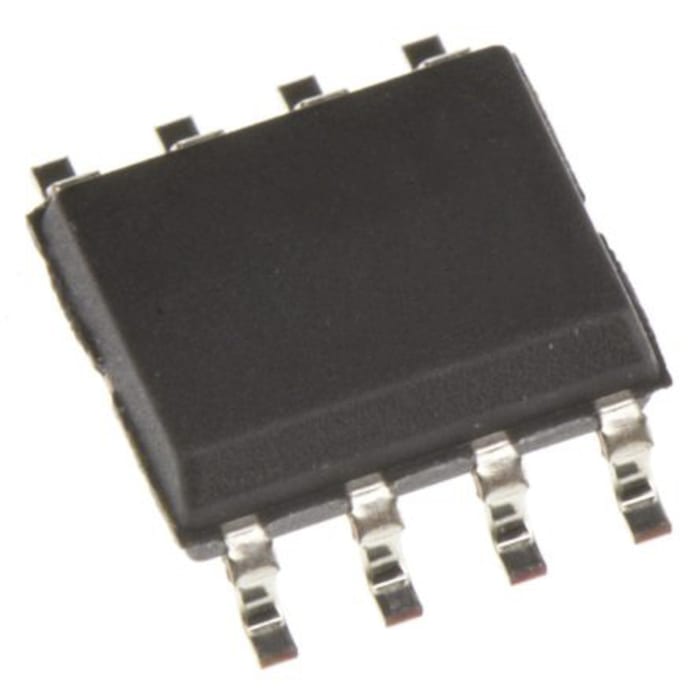

NE5534DG ON Semiconductor, Low Noise, Op Amp, 10MHz 10 kHz, 8-Pin SOIC

Brand

ON Semiconductor

Amplifier Type

Low Noise

Mounting Type

Surface Mount

Package Type

SOIC

Power Supply Type

Dual

Number of Channels per Chip

1

Pin Count

8

Typical Gain Bandwidth Product

10MHz

Output Type

Swing

Typical Dual Supply Voltage

±3 to ±20V

Typical Slew Rate

13V/µs

Maximum Operating Frequency

10 kHz

Minimum Operating Temperature

0 °C

Maximum Operating Temperature

+70 °C

Maximum Input Voltage

±32 V

Width

4mm

Offset Voltage

5mV

Typical Voltage Gain

100 V/mV

Minimum Input Voltage

±3 V

Input Voltage Range

±3 to ±32 V

Typical Input Voltage Noise Density

7nV/√Hz

Dimensions

5 x 4 x 1.5mm

Length

5mm

Input Offset Current

400nA

Height

1.5mm
