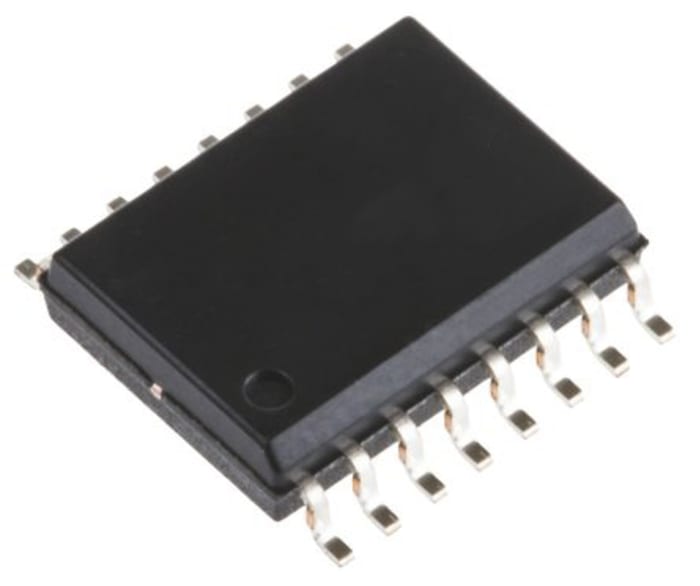

ON Semiconductor 74VHC123AM, 8 Monostable Multivibrator 8mA, 16-Pin SOIC
RS Stock No. 186-9259
Brand ON Semiconductor
Manufacturers Part No. 74VHC123AM
125 in stock in the UK
125 in stock in the UK
$ 0.498
Each (In a Pack of 25)
ON Semiconductor 74VHC123AM, 8 Monostable Multivibrator 8mA, 16-Pin SOIC
Production pack (Tube)
Live stock
125 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Family
VHC
Logic Function
Monostable Multivibrator
Number of Elements per Chip
8
Maximum High Level Output Current
-8mA
Maximum Low Level Output Current
8mA
Minimum Pulse Width
5 ns
Maximum Propagation Delay Time @ Maximum CL
29.5 ns @ 50 pF
Maximum Quiescent Current
40µA
Mounting Type
Surface Mount
Package Type
SOIC
Pin Count
16
Dimensions
10 x 4 x 1.5mm
Height
1.5mm
Length
10mm
Width
4mm
Minimum Operating Temperature
-40 °C
Minimum Operating Supply Voltage
2 V
Maximum Operating Temperature
+85 °C
Propagation Delay Test Condition
50pF
Maximum Operating Supply Voltage
5.5 V
