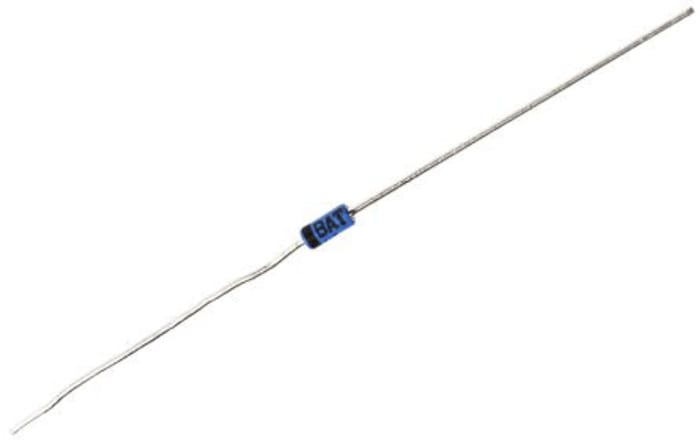

ON Semiconductor, 7.5V Zener Diode 5% 500 mW Through Hole 2-Pin DO-35
RS Stock No. 186-9251
Brand ON Semiconductor
Manufacturers Part No. 1N5236B
8500 in stock in the UK
8500 in stock in the UK
$ 0.036
Each (In a Pack of 100)
ON Semiconductor, 7.5V Zener Diode 5% 500 mW Through Hole 2-Pin DO-35
Buy in bulk
| quantity | Unit price |
|---|---|
| 100 - 900 | $ 0.036 |
| 1000 - 4900 | $ 0.024 |
| 5000 - 9900 | $ 0.021 |
| 10000 - 24900 | $ 0.019 |
| 25000+ | $ 0.017 |
Production pack (Bag)
Live stock
8500 in stock in the UK
Specifications
Brand
ON Semiconductor
Nominal Zener Voltage
7.5V
Diode Configuration
Single
Mounting Type
Through Hole
Number of Elements per Chip
1
Maximum Power Dissipation
500 mW
Package Type
DO-35
Zener Type
General Purpose
Zener Voltage Tolerance
5%
Pin Count
2
Test Current
20mA
Maximum Zener Impedance
500 Ω @ 0.25 mA, 6 Ω @ 20 mA
Maximum Reverse Leakage Current
3µA
Dimensions
1.91 (Dia.) x 4.56mm
Forward Current
200mA
Maximum Operating Temperature
+200 °C
Typical Voltage Temperature Coefficient
0.058%/°C
Minimum Operating Temperature
-65 °C
Forward Voltage
1.2V
