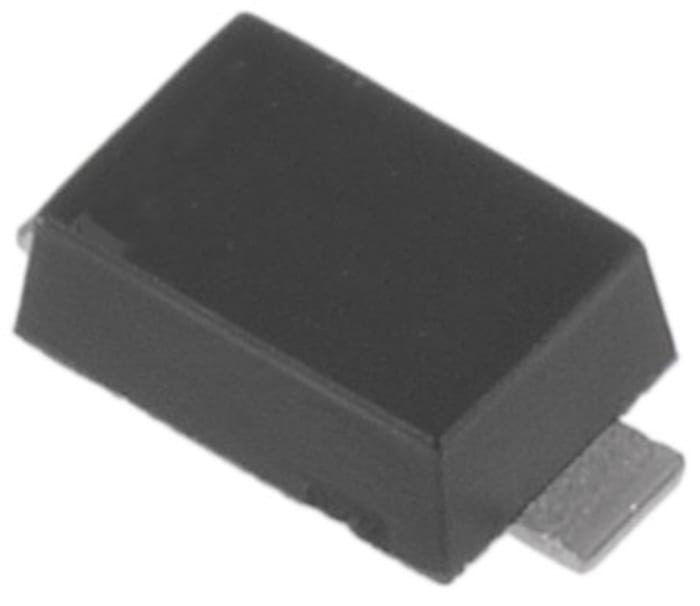

ON Semiconductor, 2.4V Zener Diode 5% 500 mW SMT 2-Pin SOD-123
RS Stock No. 186-9230
Brand ON Semiconductor
Manufacturers Part No. MMSZ5221BT1G
Temporarily out of stock
Temporarily out of stock
$ 0.152
Each (In a Pack of 50)
ON Semiconductor, 2.4V Zener Diode 5% 500 mW SMT 2-Pin SOD-123
Buy in bulk
| quantity | Unit price |
|---|---|
| 50 - 50 | $ 0.152 |
| 100 - 950 | $ 0.062 |
| 1000 - 2950 | $ 0.043 |
| 3000 - 8950 | $ 0.035 |
| 9000+ | $ 0.030 |
Production pack (Reel)
Live stock
Temporarily out of stock
Specifications
Brand
ON Semiconductor
Diode Configuration
Single
Nominal Zener Voltage
2.4V
Number of Elements per Chip
1
Mounting Type
Surface Mount
Maximum Power Dissipation
500 mW
Package Type
SOD-123
Zener Type
Voltage Regulator
Zener Voltage Tolerance
5%
Pin Count
2
Test Current
20mA
Maximum Zener Impedance
30 Ω, 1200 Ω
Maximum Reverse Leakage Current
100µA
Dimensions
2.84 x 1.8 x 1.25mm
Minimum Operating Temperature
-55 °C
Forward Voltage
0.9V
Forward Current
10mA
Automotive Standard
AEC-Q101
Maximum Operating Temperature
+150 °C
