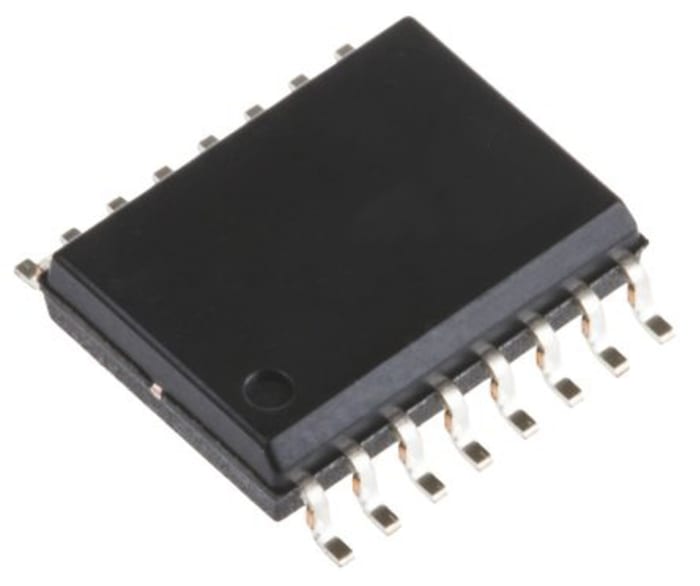

ON Semiconductor MC14521BDG Monostable Multivibrator, Frequency Divider, 16-Pin SOIC
RS Stock No. 186-9200
Brand ON Semiconductor
Manufacturers Part No. MC14521BDG
Temporarily out of stock
Back order for despatch on 09/28/2021
Temporarily out of stock
$ 0.710
Each (In a Pack of 25)
ON Semiconductor MC14521BDG Monostable Multivibrator, Frequency Divider, 16-Pin SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.710 |
| 100 - 475 | $ 0.536 |
| 500 - 975 | $ 0.458 |
| 1000 - 2475 | $ 0.367 |
| 2500+ | $ 0.330 |
Production pack (Tube)
Live stock
Temporarily out of stock
Back order for despatch on 09/28/2021
Specifications
Brand
ON Semiconductor
Logic Function
Frequency Divider
Minimum Pulse Width
120 ns
Maximum Propagation Delay Time @ Maximum CL
2600 ns @ 50 pF
Maximum Quiescent Current
150µA
Mounting Type
Surface Mount
Package Type
SOIC
Pin Count
16
Dimensions
10 x 4 x 1.5mm
Height
1.5mm
Length
10mm
Width
4mm
Minimum Operating Temperature
-55 °C
Minimum Operating Supply Voltage
3 V
Maximum Operating Temperature
+125 °C
Propagation Delay Test Condition
50pF
Automotive Standard
AEC-Q100
Maximum Operating Supply Voltage
18 V
