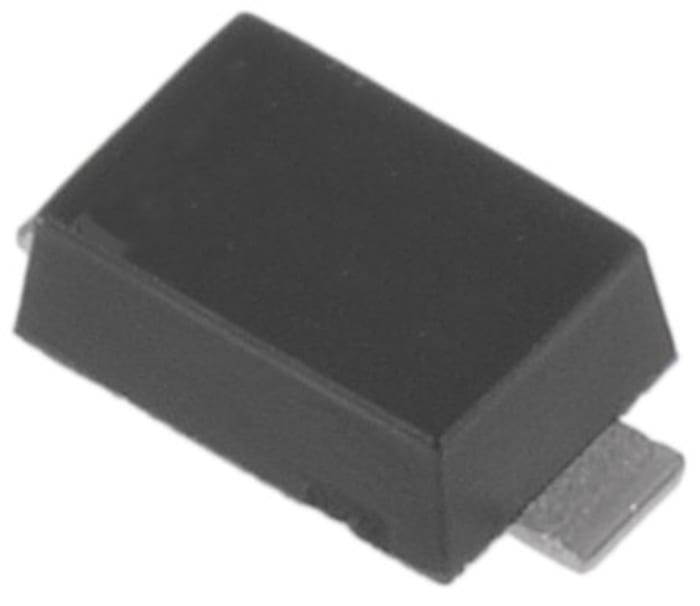

ON Semiconductor, 15V Zener Diode 5% 500 mW SMT 2-Pin SOD-123
RS Stock No. 186-9144
Brand ON Semiconductor
Manufacturers Part No. SZMMSZ5245BT1G
Temporarily out of stock
Temporarily out of stock
$ 0.213
Each (In a Pack of 25)
ON Semiconductor, 15V Zener Diode 5% 500 mW SMT 2-Pin SOD-123
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.213 |
| 100 - 975 | $ 0.091 |
| 1000 - 2975 | $ 0.068 |
| 3000 - 8975 | $ 0.048 |
| 9000+ | $ 0.043 |
Production pack (Reel)
Live stock
Temporarily out of stock
Specifications
Brand
ON Semiconductor
Diode Configuration
Single
Nominal Zener Voltage
15V
Number of Elements per Chip
1
Mounting Type
Surface Mount
Maximum Power Dissipation
500 mW
Package Type
SOD-123
Zener Type
Voltage Regulator
Zener Voltage Tolerance
5%
Pin Count
2
Test Current
8.5mA
Maximum Zener Impedance
600Ω
Maximum Reverse Leakage Current
100nA
Dimensions
2.84 x 1.8 x 1.25mm
Minimum Operating Temperature
-55 °C
Forward Voltage
0.9V
Forward Current
10mA
Maximum Operating Temperature
+150 °C
Automotive Standard
AEC-Q101
