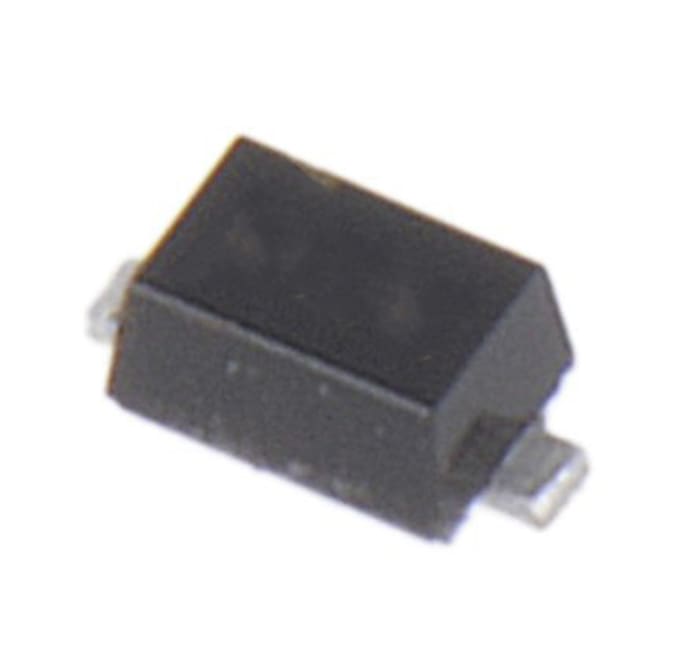

ON Semiconductor SZESD5Z3.3T1G, Uni-Directional ESD Protection Diode, 500mW, 2-Pin SOD-523
RS Stock No. 186-9137
Brand ON Semiconductor
Manufacturers Part No. SZESD5Z3.3T1G
Temporarily out of stock
Back order for despatch on 11/10/2021
Temporarily out of stock
$ 0.073
Each (On a Reel of 3000)
ON Semiconductor SZESD5Z3.3T1G, Uni-Directional ESD Protection Diode, 500mW, 2-Pin SOD-523
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 3000 | $ 0.073 |
| 6000 - 9000 | $ 0.071 |
| 12000 - 15000 | $ 0.064 |
| 18000 - 21000 | $ 0.063 |
| 24000+ | $ 0.062 |
Live stock
Temporarily out of stock
Back order for despatch on 11/10/2021
Specifications
Brand
ON Semiconductor
Direction Type
Uni-Directional
Diode Configuration
Single
Maximum Clamping Voltage
14.1V
Minimum Breakdown Voltage
3.3V
Mounting Type
Surface Mount
Package Type
SOD-523
Maximum Reverse Stand-off Voltage
12V
Pin Count
2
Peak Pulse Power Dissipation
500mW
Maximum Peak Pulse Current
8.4A
ESD protection
Yes
Number of Elements per Chip
1
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+150 °C
Height
0.7mm
Width
0.9mm
Test Current
1mA
Maximum Reverse Leakage Current
50nA
Dimensions
1.3 x 0.9 x 0.7mm
Automotive Standard
AEC-Q101
Capacitance
105pF
Length
1.3mm
