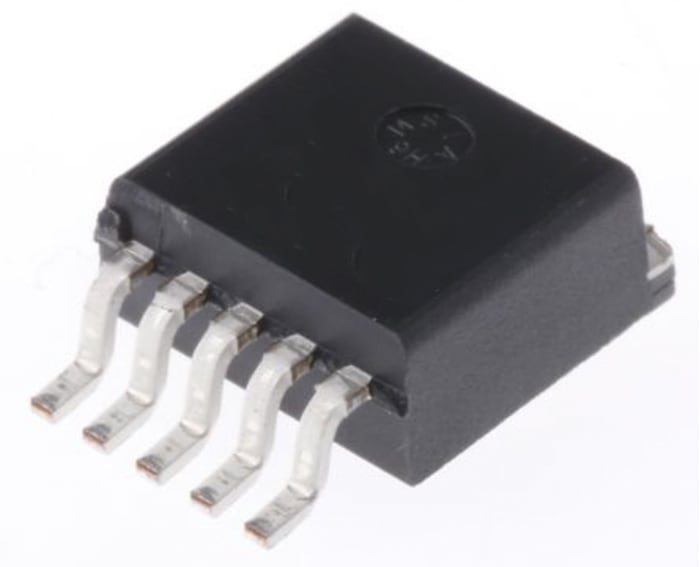

ON Semiconductor, 1.24 → 13 V Linear Voltage Regulator, 3A, 1-Channel, Adjustable, ±2% 5-Pin, D2PAK
RS Stock No. 186-9116
Brand ON Semiconductor
Manufacturers Part No. NCP59302DSADJR4G
Temporarily out of stock
Back order for despatch on 06/23/2021
Temporarily out of stock
$ 1.265
Each (On a Reel of 800)
ON Semiconductor, 1.24 → 13 V Linear Voltage Regulator, 3A, 1-Channel, Adjustable, ±2% 5-Pin, D2PAK
Buy in bulk
| quantity | Unit price |
|---|---|
| 800 - 800 | $ 1.265 |
| 1600 - 1600 | $ 1.231 |
| 2400+ | $ 1.202 |
Live stock
Temporarily out of stock
Back order for despatch on 06/23/2021
Specifications
Brand
ON Semiconductor
Maximum Output Current
3A
Regulator Type
Linear Voltage
Number of Outputs
1
Line Regulation
0.5 %
Accuracy
±2%
Load Regulation
1 %
Mounting Type
Surface Mount
Polarity
Positive
Package Type
D2PAK
Pin Count
5
Reference Voltage
1.26V
Output Type
Adjustable
Dimensions
10.23 x 9.34 x 4.57mm
Height
4.57mm
Width
9.34mm
Minimum Operating Temperature
-40 °C
Minimum Input Voltage
0 V
Maximum Operating Temperature
+125 °C
Automotive Standard
AEC-Q100
Length
10.23mm
Maximum Input Voltage
18 V
